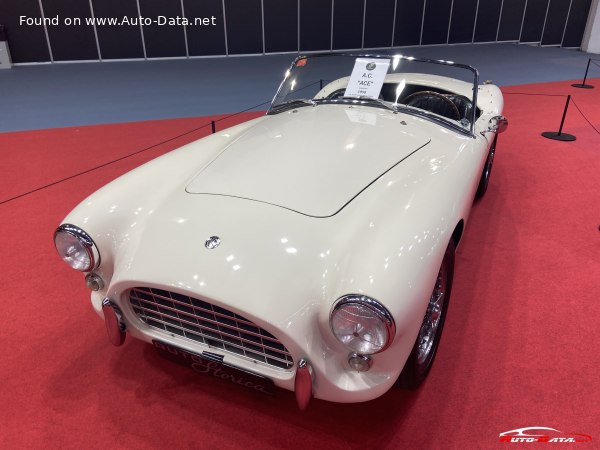

Specifications: AC Ace Bristol 2.0i (120 Hp) /1956, 1957, 1958, 1959, 1960/

AC Ace Bristol 2.0i (120 Hp) – Full specifications
General information
Brand	AC
Model	Ace
Generation	Ace Bristol
Modification (Engine)	2.0i (120 Hp)
Start of production	1956 year
End of production	1960 year
Powertrain Architecture	Internal Combustion engine
Body type	Roadster
Seats	2
Doors	2
Performance specs
Fuel Type	Petrol (Gasoline)
Maximum speed	186 km/h 115.58 mph
Weight-to-power ratio	6.8 kg/Hp, 147.2 Hp/tonne
Weight-to-torque ratio	4.9 kg/Nm, 202.5 Nm/tonne
Engine specs
Power	120 Hp @ 5750 rpm.
Power per litre	60.9 Hp/l
Torque	165 Nm @ 4500 rpm. 121.7 lb.-ft. @ 4500 rpm.
Maximum engine speed	6000 rpm.
Engine layout	Front, Longitudinal
Engine Model/Code	100D2
Engine displacement	1971 cm³ 120.28 cu. in.
Number of cylinders	6
Engine configuration	Inline
Cylinder Bore	66 mm 2.6 in.
Piston Stroke	96 mm 3.78 in.
Compression ratio	8.5:1
Number of valves per cylinder	2
Fuel injection system	Carburettor
Valvetrain	OHV

Space, Volume and weights
Kerb Weight	815 kg 1796.77 lbs.
Fuel tank capacity	54 l 14.27 US gal \| 11.88 UK gal
Dimensions
Length	3780 mm 148.82 in.
Width	1510 mm 59.45 in.
Height	1220 mm 48.03 in.
Wheelbase	2286 mm 90 in.
Front track	1270 mm 50 in.
Rear (Back) track	1270 mm 50 in.
Drag coefficient (C_d)	0.55
Drivetrain, brakes and suspension specs
Drivetrain Architecture	The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel	Rear wheel drive
Number of gears and type of gearbox	4 gears, manual transmission
Front suspension	Leaf spring
Rear suspension	Leaf spring
Front brakes	Drum
Rear brakes	Drum
