Specifications: Acura CSX (facelift, 2009) 2.0 i 16V (157 Hp) /2009, 2010, 2011/

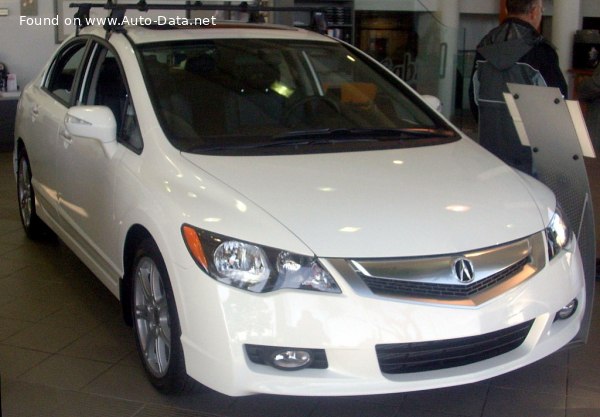

2010 Acura CSX (facelift, 2009) - Photo 1

Acura CSX (facelift, 2009) 2.0 i 16V (157 Hp) – Full specifications
General information
Brand Acura
Model CSX
Generation CSX (facelift, 2009)
Modification (Engine) 2.0 i 16V (157 Hp)
Start of production 2009 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel consumption (economy) – extra urban 6.4 l/100 km
36.75 US mpg
44.14 UK mpg
15.63 km/l
Fuel Type Petrol (Gasoline)
Emission standard Euro 4
Weight-to-power ratio 8.2 kg/Hp, 121.7 Hp/tonne
Weight-to-torque ratio 6.9 kg/Nm, 145.7 Nm/tonne
Engine specs
Power 157 Hp @ 6000 rpm.
Power per litre 78.6 Hp/l
Torque 188 Nm @ 4500 rpm.
138.66 lb.-ft. @ 4500 rpm.
Engine layout Rear, Transverse
Engine Model/Code K20Z2
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1290 kg
2843.96 lbs.
Trunk (boot) space – maximum 340 l
12.01 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4544 mm
178.9 in.
Width 1752 mm
68.98 in.
Height 1435 mm
56.5 in.
Wheelbase 2700 mm
106.3 in.
Front track 1499 mm
59.02 in.
Rear (Back) track 1528 mm
60.16 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55R16
