Specifications: Acura EL 1.6 i 16V (107 Hp) /1997, 1998, 1999, 2000/

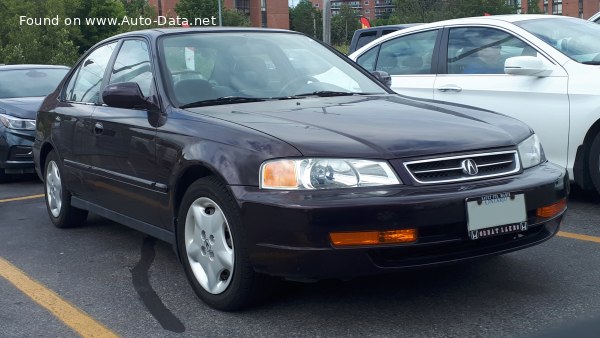

1997 Acura EL - Photo 1

Acura EL 1.6 i 16V (107 Hp) – Full specifications
General information
Brand Acura
Model EL
Generation EL
Modification (Engine) 1.6 i 16V (107 Hp)
Start of production 1997 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 7.1 l/100 km
33.13 US mpg
39.79 UK mpg
14.08 km/l
Fuel consumption (economy) – extra urban 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.4 sec
Acceleration 0 – 62 mph 9.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.9 sec
Maximum speed 175 km/h
108.74 mph
Weight-to-power ratio 10.7 kg/Hp, 93.4 Hp/tonne
Weight-to-torque ratio 8.2 kg/Nm, 121.4 Nm/tonne
Engine specs
Power 107 Hp @ 6200 rpm.
Power per litre 67.3 Hp/l
Torque 139 Nm @ 4600 rpm.
102.52 lb.-ft. @ 4600 rpm.
Engine layout Front, Transverse
Engine Model/Code D16Y6
Engine displacement 1590 cm3
97.03 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 9.4:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1145 kg
2524.29 lbs.
Max. weight 1650 kg
3637.63 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 375 l
13.24 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 4480 mm
176.38 in.
Width 1705 mm
67.13 in.
Height 1395 mm
54.92 in.
Wheelbase 2620 mm
103.15 in.
Front track 1480 mm
58.27 in.
Rear (Back) track 1480 mm
58.27 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/70 R13
