Specifications: Acura ILX 1.5 (111 Hp) Hybrid CVT /2013, 2014, 2015/

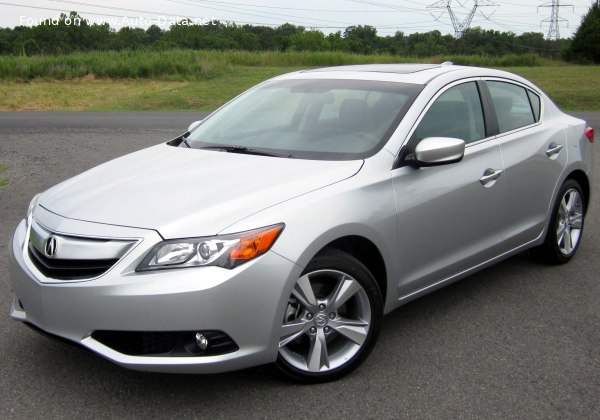

2013 Acura ILX - Photo 1

Acura ILX 1.5 (111 Hp) Hybrid CVT – Full specifications
General information
Brand Acura
Model ILX
Generation ILX
Modification (Engine) 1.5 (111 Hp) Hybrid CVT
Start of production 2013 year
End of production 2015 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 6 l/100 km
39.2 US mpg
47.08 UK mpg
16.67 km/l
Fuel consumption (economy) – extra urban 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel consumption (economy) – combined 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel Type Petrol (Gasoline)
Emission standard AT-PZEV
Weight-to-power ratio 12.1 kg/Hp, 82.7 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 128.2 Nm/tonne
Electric cars and hybrids specs
Battery voltage 144 V
Battery technology Lithium-ion (Li-Ion)
Battery weight 22 kg
48.5 lbs.
Electric motor 1
Electric motor power 23 Hp @ 1546-3000 rpm.
Electric motor Torque 106 Nm @ 500-1546 rpm.

78.18 lb.-ft. @ 500-1546 rpm.
Electric motor location Integrated into the transmission
Internal combustion engine specs
Power 111 Hp @ 5500 rpm.
Power per litre 74.1 Hp/l
Torque 172 Nm @ 1000-3500 rpm.
126.86 lb.-ft. @ 1000-3500 rpm.
Maximum engine speed 6000 rpm.
Engine layout Front, Transverse
Engine Model/Code LEA-MF6
Engine displacement 1497 cm3
91.35 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 73 mm
2.87 in.
Piston Stroke 89.4 mm
3.52 in.
Compression ratio 10.8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC, i-VTEC
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.2 l
5.49 US qt | 4.58 UK qt

Space, Volume and weights
Kerb Weight 1342 kg
2958.6 lbs.
Trunk (boot) space – minimum 283 l
9.99 cu. ft.
Trunk (boot) space – maximum 348 l
12.29 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4550 mm
179.13 in.
Width 1794 mm
70.63 in.
Height 1412 mm
55.59 in.
Wheelbase 2670 mm
105.12 in.
Front track 1509 mm
59.41 in.
Rear (Back) track 1532 mm
60.31 in.
Ride height (ground clearance) 117 mm
4.61 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Double wishbone
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 261.62 mm
Rear brakes Disc, 259.08 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55R16 89H
Wheel rims size 6.5J x 16
