Specifications: Acura MDX 3.5 i V6 24V (263 Hp) /2003, 2004, 2005, 2006/

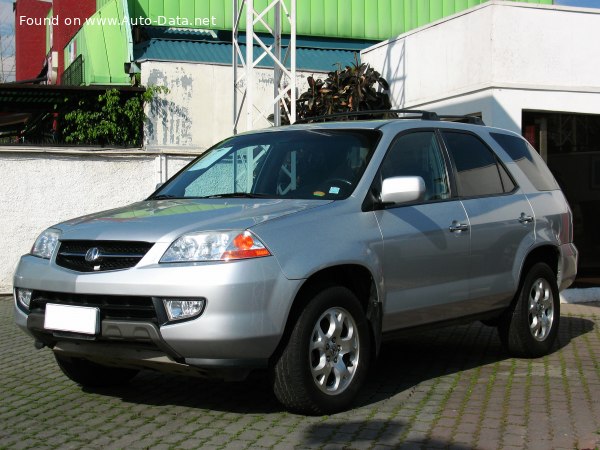

2001 Acura MDX - Photo 1

Acura MDX 3.5 i V6 24V (263 Hp) – Full specifications
General information
Brand Acura
Model MDX
Generation MDX
Modification (Engine) 3.5 i V6 24V (263 Hp)
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 13.9 l/100 km
16.92 US mpg
20.32 UK mpg
7.19 km/l
Fuel consumption (economy) – extra urban 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 190 km/h
118.06 mph
Weight-to-power ratio 7.9 kg/Hp, 127.4 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 164.2 Nm/tonne
Engine specs
Power 263 Hp @ 5750 rpm.
Power per litre 75.8 Hp/l
Torque 339 Nm @ 3500 rpm.
250.03 lb.-ft. @ 3500 rpm.
Engine layout Front, Transverse
Engine Model/Code J35A5
Engine displacement 3471 cm3
211.81 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 89 mm
3.5 in.
Piston Stroke 93 mm
3.66 in.
Compression ratio 10:1
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 2065 kg
4552.55 lbs.
Max. weight 2600 kg
5732.02 lbs.
Max load 535 kg
1179.47 lbs.
Trunk (boot) space – minimum 419 l
14.8 cu. ft.
Trunk (boot) space – maximum 2308 l
81.51 cu. ft.
Fuel tank capacity 73 l
19.28 US gal | 16.06 UK gal
Dimensions
Length 4789 mm
188.54 in.
Width 1955 mm
76.97 in.
Height 1744 mm
68.66 in.
Wheelbase 2700 mm
106.3 in.
Front track 1685 mm
66.34 in.
Rear (Back) track 1690 mm
66.54 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 235/65 R17
