Specifications: Acura MDX III (facelift 2017) 3.5 V6 (290 Hp) AWD Automatic /2016, 2017, 2018, 2019, 2020/

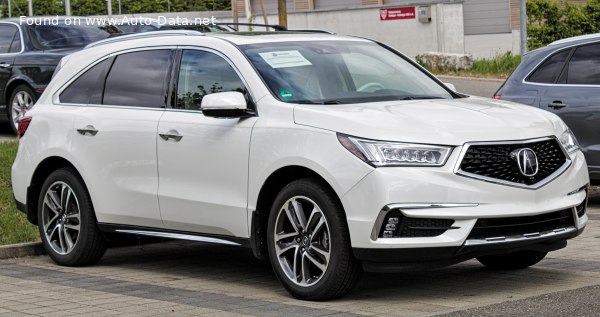

2017 Acura MDX III (facelift 2017) - Photo 1

Acura MDX III (facelift 2017) 3.5 V6 (290 Hp) AWD Automatic – Full specifications
General information
Brand Acura
Model MDX
Generation MDX III (facelift 2017)
Modification (Engine) 3.5 V6 (290 Hp) AWD Automatic
Start of production 2016 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 6-7
Doors 5
Performance specs
Fuel consumption (economy) – urban 13.1-14.7 l/100 km
17.96 – 16 US mpg
21.56 – 19.22 UK mpg
7.63 – 6.8 km/l
Fuel consumption (economy) – extra urban 9 l/100 km
26.13 US mpg
31.39 UK mpg
11.11 km/l
Fuel consumption (economy) – combined 10.7-11.2 l/100 km
21.98 – 21 US mpg
26.4 – 25.22 UK mpg
9.35 – 8.93 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.5 kg/Hp, 155 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 193.5 Nm/tonne
Engine specs
Power 290 Hp @ 6200 rpm.
Power per litre 83.5 Hp/l
Torque 362 Nm @ 4700 rpm.
267 lb.-ft. @ 4700 rpm.
Engine layout Front, Transverse
Engine Model/Code J35Y5
Engine displacement 3471 cm3
211.81 cu. in.
Number of cylinders 6
Engine configuration V-engine
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC, i-VTEC
Engine oil capacity 5.1 l
5.39 US qt | 4.49 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.4 l
7.82 US qt | 6.51 UK qt

Space, Volume and weights
Kerb Weight 1871-1947 kg
4124.85 – 4292.4 lbs.
Trunk (boot) space – minimum 447 l
15.79 cu. ft.
Trunk (boot) space – maximum 2574 l
90.9 cu. ft.
Fuel tank capacity 74 l
19.55 US gal | 16.28 UK gal
Dimensions
Length 4984 mm
196.22 in.
Width 1713 mm
67.44 in.
Height 1975 mm
77.76 in.
Wheelbase 2820 mm
111.02 in.
Front track 1684 mm
66.3 in.
Rear (Back) track 1684 mm
66.3 in.
Ride height (ground clearance) 185 mm
7.28 in.
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Approach angle 14.9°
Departure angle 17.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 9 gears, automatic transmission SportShift
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/60 R18; 245/50 R20
Wheel rims size 8J x 18; 8J x 20
