Specifications: Acura MDX IV (facelift 2024) Type S 3.0 V6 (355 Hp) SH-AWD Automatic /2024, 2025/

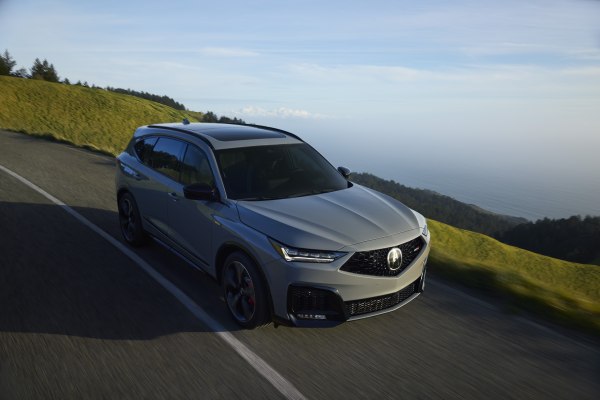

2025 Acura MDX IV (facelift 2024) - Photo 1

Acura MDX IV (facelift 2024) Type S 3.0 V6 (355 Hp) SH-AWD Automatic – Full specifications
General information
Brand Acura
Model MDX
Generation MDX IV (facelift 2024)
Modification (Engine) Type S 3.0 V6 (355 Hp) SH-AWD Automatic
Start of production May, 2024 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel consumption (economy) – extra urban (EPA) 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel consumption (economy) – combined (EPA) 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV70
Weight-to-power ratio 6.1 kg/Hp, 163.9 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 221.6 Nm/tonne
Engine specs
Power 355 Hp @ 5500 rpm.
Power per litre 118.5 Hp/l
Torque 480 Nm @ 1400-5000 rpm.
354.03 lb.-ft. @ 1400-5000 rpm.
Engine layout Front, Transverse
Engine Model/Code J30AC
Engine displacement 2997 cm3
182.89 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 9.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.1 l
10.67 US qt | 8.89 UK qt
Engine systems Start & Stop System
Cylinder deactivation system

Space, Volume and weights
Kerb Weight 2166 kg
4775.21 lbs.
Trunk (boot) space – minimum 462 l
16.32 cu. ft.
Trunk (boot) space – maximum 2690 l
95 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 2268 kg
5000.08 lbs.
Dimensions
Length 5039 mm
198.39 in.
Width 1999 mm
78.7 in.
Height 1704 mm
67.09 in.
Wheelbase 2891 mm
113.82 in.
Front track 1720 mm
67.72 in.
Rear (Back) track 1720 mm
67.72 in.
Ride height (ground clearance) 170-239 mm
6.69 – 9.41 in.
Minimum turning circle (turning diameter) 12.3 m
40.35 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission
Front suspension Double wishbone, Transverse stabilizer, Air suspension
Rear suspension Independent multi-link suspension, Air suspension, Transverse stabilizer
Front brakes Ventilated discs, 363 mm
Rear brakes Disc, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 275/40 R21
Wheel rims size 9.5J x 21
