Specifications: Acura NSX I Coupe 3.0 i V6 24V (255 Hp) Automatic /1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001/

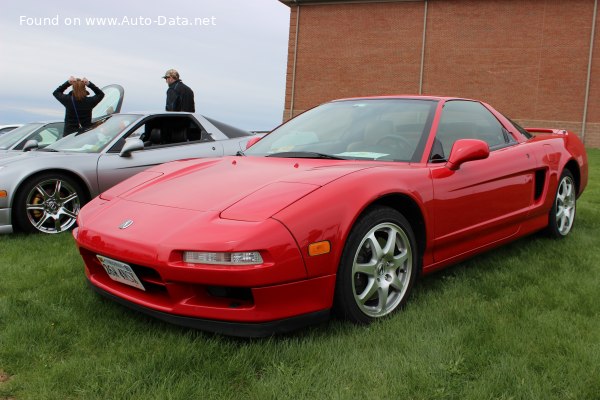

1990 Acura NSX I Coupe - Photo 1

Acura NSX I Coupe 3.0 i V6 24V (255 Hp) Automatic – Full specifications
General information
Brand Acura
Model NSX
Generation NSX I Coupe
Modification (Engine) 3.0 i V6 24V (255 Hp) Automatic
Start of production 1990 year
End of production 2001 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – combined 10.9 l/100 km
21.58 US mpg
25.92 UK mpg
9.17 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.9 sec
Acceleration 0 – 62 mph 5.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.6 sec
Maximum speed 260 km/h
161.56 mph
Weight-to-power ratio 5.5 kg/Hp, 180.9 Hp/tonne
Weight-to-torque ratio 5 kg/Nm, 201.4 Nm/tonne
Engine specs
Power 255 Hp @ 6800 rpm.
Power per litre 85.7 Hp/l
Torque 284 Nm @ 5400 rpm.
209.47 lb.-ft. @ 5400 rpm.
Engine layout Middle, Transverse
Engine Model/Code C30A
Engine displacement 2977 cm3
181.67 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 90 mm
3.54 in.
Piston Stroke 78 mm
3.07 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 16.5 l
17.44 US qt | 14.52 UK qt

Space, Volume and weights
Kerb Weight 1410 kg
3108.52 lbs.
Max. weight 1610 kg
3549.44 lbs.
Max load 200 kg
440.92 lbs.
Trunk (boot) space – minimum 154 l
5.44 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4425 mm
174.21 in.
Width 1810 mm
71.26 in.
Height 1175 mm
46.26 in.
Wheelbase 2530 mm
99.61 in.
Front track 1510 mm
59.45 in.
Rear (Back) track 1530 mm
60.24 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 245/40 R17
Wheel rims size 17
