Specifications: Acura RDX I (facelift 2009) 2.3 (240 Hp) Automatic /2009, 2010, 2011, 2012/

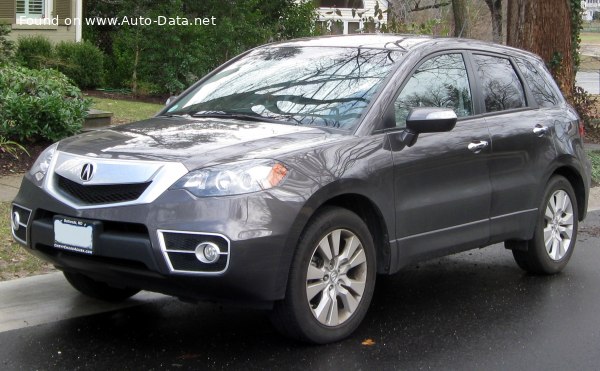

2010 Acura RDX I (facelift 2009) - Photo 1

Acura RDX I (facelift 2009) 2.3 (240 Hp) Automatic – Full specifications
General information
Brand Acura
Model RDX
Generation RDX I (facelift 2009)
Modification (Engine) 2.3 (240 Hp) Automatic
Start of production 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – extra urban 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – combined 11.6 l/100 km
20.28 US mpg
24.35 UK mpg
8.62 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.5 sec
Acceleration 0 – 62 mph 7.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.1 sec
Maximum speed 195 km/h
121.17 mph
Weight-to-power ratio 7.1 kg/Hp, 141.3 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 153.1 Nm/tonne
Engine specs
Power 240 Hp @ 6000 rpm.
Power per litre 104.3 Hp/l
Torque 260 Nm @ 4500 rpm.
191.77 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code K23A1
Engine displacement 2300 cm3
140.35 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC, i-VTEC
Engine oil capacity 5.8 l
6.13 US qt | 5.1 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.4 l
8.88 US qt | 7.39 UK qt

Space, Volume and weights
Kerb Weight 1698 kg
3743.45 lbs.
Max. weight 2340 kg
5158.82 lbs.
Max load 642 kg
1415.37 lbs.
Trunk (boot) space – minimum 787 l
27.79 cu. ft.
Trunk (boot) space – maximum 1716 l
60.6 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 4635 mm
182.48 in.
Width 1870 mm
73.62 in.
Height 1655 mm
65.16 in.
Wheelbase 2650 mm
104.33 in.
Front track 1572 mm
61.89 in.
Rear (Back) track 1590 mm
62.6 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 235/55 R18
Wheel rims size 18
