Specifications: Acura RL (KA964) 3.5 i V6 24V (208 Hp) /1995, 1996, 1997, 1998, 1999, 2000, 2001/

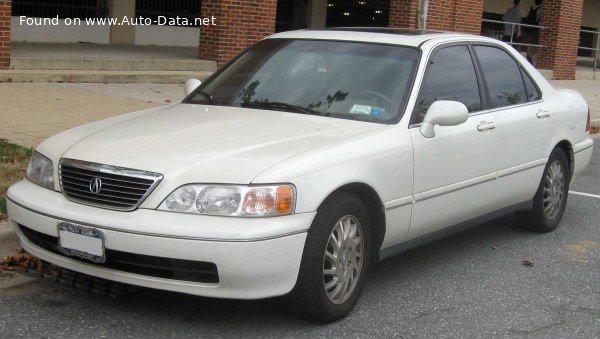

1996 Acura RL (KA964) - Photo 1

Acura RL (KA964) 3.5 i V6 24V (208 Hp) – Full specifications
General information
Brand Acura
Model RL
Generation RL (KA964)
Modification (Engine) 3.5 i V6 24V (208 Hp)
Start of production 1995 year
End of production 2001 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – extra urban 9.4 l/100 km
25.02 US mpg
30.05 UK mpg
10.64 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8 sec
Acceleration 0 – 62 mph 8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.6 sec
Maximum speed 210 km/h
130.49 mph
Weight-to-power ratio 7.8 kg/Hp, 128 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 182.8 Nm/tonne
Engine specs
Power 208 Hp @ 5200 rpm.
Power per litre 59.9 Hp/l
Torque 297 Nm @ 2800 rpm.
219.06 lb.-ft. @ 2800 rpm.
Engine layout Front, Transverse
Engine Model/Code C35A
Engine displacement 3474 cm3
212 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 90 mm
3.54 in.
Piston Stroke 91 mm
3.58 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.6 l
9.09 US qt | 7.57 UK qt

Space, Volume and weights
Kerb Weight 1625 kg
3582.51 lbs.
Max. weight 2130 kg
4695.85 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 450 l
15.89 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 4980 mm
196.06 in.
Width 1810 mm
71.26 in.
Height 1430 mm
56.3 in.
Wheelbase 2910 mm
114.57 in.
Front track 1550 mm
61.02 in.
Rear (Back) track 1540 mm
60.63 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/55 R16
