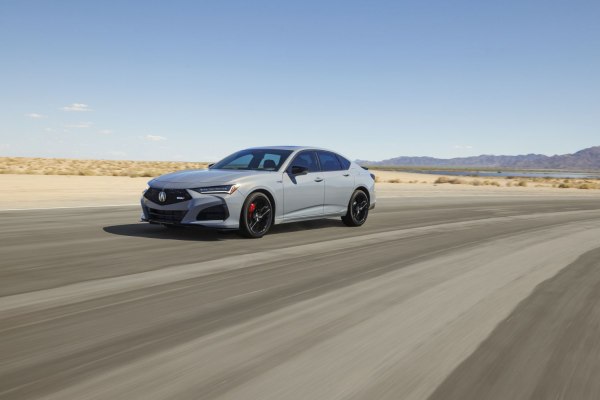

2024 Acura TLX II (facelift 2023) - Photo 1

Acura TLX II (facelift 2023) 2.0 Turbo (272 Hp) SH-AWD Automatic – Full specifications

General information
Brand Acura
Model TLX
Generation TLX II (facelift 2023)
Modification (Engine) 2.0 Turbo (272 Hp) SH-AWD Automatic
Start of production November, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 272 Hp @ 6500 rpm.
Power per litre 136.3 Hp/l
Torque 380 Nm @ 1600-4500 rpm.
280.27 lb.-ft. @ 1600-4500 rpm.
Engine layout Front, Transverse
Engine Model/Code K20C6
Engine displacement 1996 cm3
121.8 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 85.9 mm
3.38 in.
Compression ratio 9.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC, VTEC
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.96 l
5.24 US qt | 4.36 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Trunk (boot) space – minimum 382 l
13.49 cu. ft.
Dimensions
Length 4943 mm
194.61 in.
Width 1910 mm
75.2 in.
Height 1433 mm
56.42 in.
Wheelbase 2870 mm
112.99 in.
Front track 1626 mm
64.02 in.
Rear (Back) track 1641 mm
64.61 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/40 R19
Wheel rims size 8.5J x 19
