Specifications: Acura TLX II Type S 3.0 Turbo V6 (355 Hp) SH-AWD Automatic /2021, 2022, 2023, 2024, 2025/

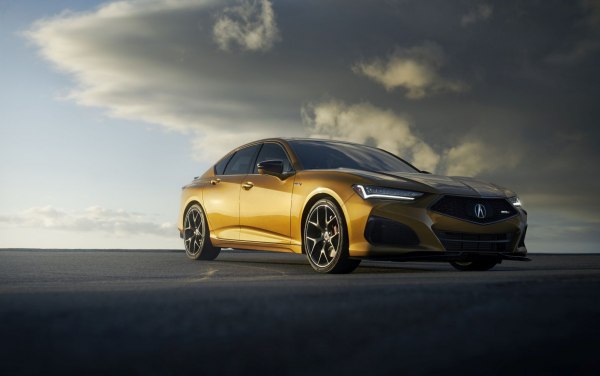

2021 Acura TLX II - Photo 1

Acura TLX II Type S 3.0 Turbo V6 (355 Hp) SH-AWD Automatic – Full specifications
General information
Brand Acura
Model TLX
Generation TLX II
Modification (Engine) Type S 3.0 Turbo V6 (355 Hp) SH-AWD Automatic
Start of production June, 2021 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – extra urban 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – combined 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV70
Weight-to-power ratio 5.5 kg/Hp, 182.5 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 246.8 Nm/tonne
Engine specs
Power 355 Hp @ 5500 rpm.
Torque 480 Nm @ 1400-5000 rpm.
354.03 lb.-ft. @ 1400-5000 rpm.
Engine layout Front, Transverse
Engine Model/Code J30AC
Number of cylinders 6
Engine configuration V-engine
Compression ratio 9.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.3 l
8.77 US qt | 7.3 UK qt
Engine systems Start & Stop System
Cylinder deactivation system

Space, Volume and weights
Kerb Weight 1945 kg
4287.99 lbs.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4943 mm
194.61 in.
Width 1910 mm
75.2 in.
Height 1433 mm
56.42 in.
Wheelbase 2870 mm
112.99 in.
Front track 1626 mm
64.02 in.
Rear (Back) track 1641 mm
64.61 in.
Ride height (ground clearance) 135 mm
5.31 in.
Minimum turning circle (turning diameter) 12.3 m
40.35 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 363.22 mm
Rear brakes Disc, 330.2 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/35 R20
