Specifications: Acura TSX (facelift) 2.4 (201 Hp) /2011, 2012, 2013, 2014/

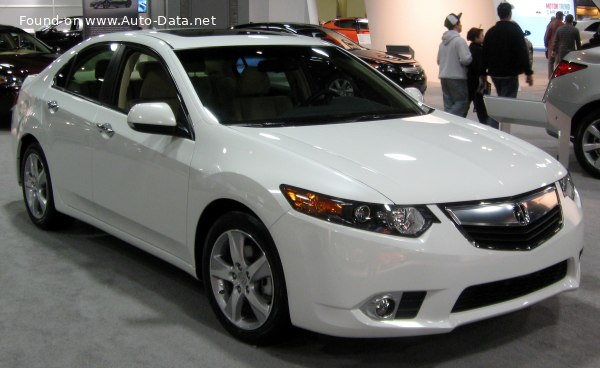

2011 Acura TSX (facelift) - Photo 1

Acura TSX (facelift) 2.4 (201 Hp) – Full specifications
General information
Brand Acura
Model TSX
Generation TSX (facelift)
Modification (Engine) 2.4 (201 Hp)
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel consumption (economy) – extra urban 8.1 l/100 km
29.04 US mpg
34.87 UK mpg
12.35 km/l
Fuel consumption (economy) – combined 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.7 kg/Hp, 129.8 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 150.4 Nm/tonne
Engine specs
Power 201 Hp @ 7000 rpm.
Torque 233 Nm @ 4300 rpm.
171.85 lb.-ft. @ 4300 rpm.
Engine layout Front, Transverse
Engine Model/Code K24Z3
Number of cylinders 4
Engine configuration Inline
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.3 l
6.66 US qt | 5.54 UK qt

Space, Volume and weights
Kerb Weight 1549 kg
3414.96 lbs.
Trunk (boot) space – minimum 396 l
13.98 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4715 mm
185.63 in.
Width 1840 mm
72.44 in.
Height 1440 mm
56.69 in.
Wheelbase 2705 mm
106.5 in.
Front track 1580 mm
62.2 in.
Rear (Back) track 1580 mm
62.2 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size P225/50 R17 93V
Wheel rims size 7.5J x 17
