Specifications: Alfa Romeo 145 (930, facelift 1999) 1.8 Twin Spark 16V (144 Hp) /1999, 2000/

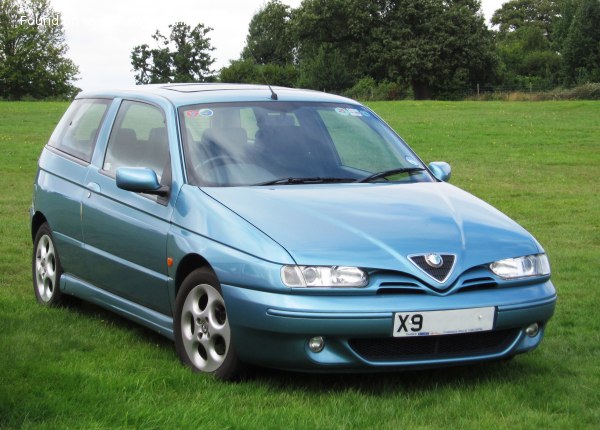

1999 Alfa Romeo 145 (930, facelift 1999) - Photo 1

Alfa Romeo 145 (930, facelift 1999) 1.8 Twin Spark 16V (144 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 145
Generation 145 (930, facelift 1999)
Modification (Engine) 1.8 Twin Spark 16V (144 Hp)
Start of production 1999 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 11.4 l/100 km
20.63 US mpg
24.78 UK mpg
8.77 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.4 l/100 km
36.75 US mpg
44.14 UK mpg
15.63 km/l
Fuel consumption (economy) – combined (NEDC) 8.2 l/100 km
28.68 US mpg
34.45 UK mpg
12.2 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.1 sec
Acceleration 0 – 62 mph 9.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.6 sec
Maximum speed 207 km/h
128.62 mph
Emission standard Euro 2
Weight-to-power ratio 8.3 kg/Hp, 120.5 Hp/tonne
Weight-to-torque ratio 7.1 kg/Nm, 141.4 Nm/tonne
Engine specs
Power 144 Hp @ 6500 rpm.
Power per litre 82.4 Hp/l
Torque 169 Nm @ 3500 rpm.
124.65 lb.-ft. @ 3500 rpm.
Engine layout Front, Transverse
Engine Model/Code AR 32201
Engine displacement 1747 cm3
106.61 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 82.7 mm
3.26 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.4 l
8.88 US qt | 7.39 UK qt

Space, Volume and weights
Kerb Weight 1195 kg
2634.52 lbs.
Max. weight 1715 kg
3780.93 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 320 l
11.3 cu. ft.
Trunk (boot) space – maximum 1130 l
39.91 cu. ft.
Fuel tank capacity 51 l
13.47 US gal | 11.22 UK gal
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 350 kg
771.62 lbs.
Permitted towbar download 50 kg
110.23 lbs.
Dimensions
Length 4061 mm
159.88 in.
Width 1712 mm
67.4 in.
Height 1431 mm
56.34 in.
Wheelbase 2540 mm
100 in.
Front track 1468 mm
57.8 in.
Rear (Back) track 1441 mm
56.73 in.
Front overhang 871 mm
34.29 in.
Rear overhang 650 mm
25.59 in.
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Transverse stabilizer, Trailing arm, Coil spring
Front brakes Disc, 284×21.8 mm
Rear brakes Drum, 228.7 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/55 R 15
Wheel rims size 6 J x 15
