Specifications: Alfa Romeo 146 (930) 1.9 TD (90 Hp) /1994, 1995, 1996/

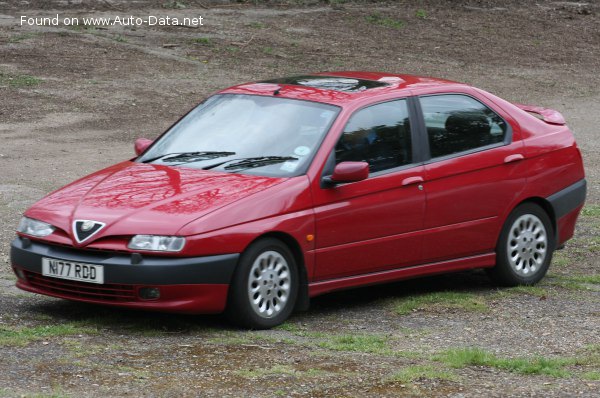

1995 Alfa Romeo 146 (930) - Photo 1

Alfa Romeo 146 (930) 1.9 TD (90 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 146
Generation 146 (930)
Modification (Engine) 1.9 TD (90 Hp)
Start of production 1994 year
End of production 1996 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.9 l/100 km
34.09 US mpg
40.94 UK mpg
14.49 km/l
Fuel consumption (economy) – extra urban 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.5 sec
Acceleration 0 – 62 mph 12.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.9 sec
Maximum speed 179 km/h
111.23 mph
Weight-to-power ratio 13.2 kg/Hp, 75.6 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 156.3 Nm/tonne
Engine specs
Power 90 Hp @ 4100 rpm.
Power per litre 46.7 Hp/l
Torque 186 Nm @ 2400 rpm.
137.19 lb.-ft. @ 2400 rpm.
Engine layout Front, Transverse
Engine Model/Code AR 33601
Engine displacement 1929 cm3
117.71 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.6 mm
3.25 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 19.5:1
Number of valves per cylinder 2
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.9 l
9.4 US qt | 7.83 UK qt

Space, Volume and weights
Kerb Weight 1190 kg
2623.5 lbs.
Max. weight 1765 kg
3891.16 lbs.
Max load 575 kg
1267.66 lbs.
Trunk (boot) space – minimum 380 l
13.42 cu. ft.
Trunk (boot) space – maximum 1225 l
43.26 cu. ft.
Fuel tank capacity 51 l
13.47 US gal | 11.22 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Dimensions
Length 4257 mm
167.6 in.
Width 1712 mm
67.4 in.
Height 1425 mm
56.1 in.
Wheelbase 2540 mm
100 in.
Front track 1472 mm
57.95 in.
Rear (Back) track 1441 mm
56.73 in.
Front overhang 887 mm
34.92 in.
Rear overhang 830 mm
32.68 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Transverse stabilizer, Trailing arm, Coil spring
Front brakes Disc, 257 mm
Rear brakes Disc, 228 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/65 R14
Wheel rims size 5.5J x 14
