Specifications: Alfa Romeo 146 (930, facelift 1999) 1.9 JTD (105 Hp) /1999, 2000/

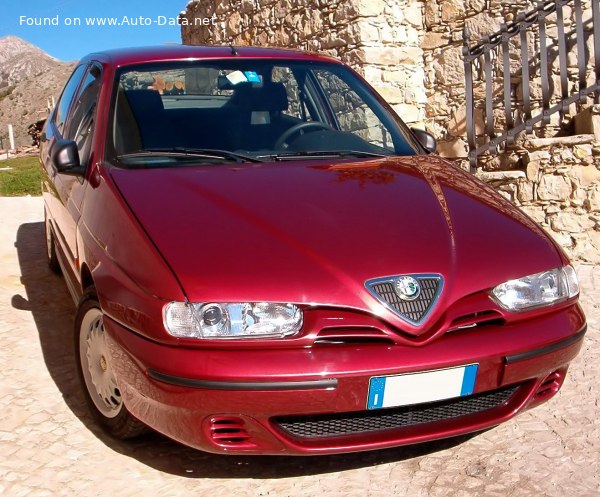

1999 Alfa Romeo 146 (930, facelift 1999) - Photo 1

Alfa Romeo 146 (930, facelift 1999) 1.9 JTD (105 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 146
Generation 146 (930, facelift 1999)
Modification (Engine) 1.9 JTD (105 Hp)
Start of production 1999 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.6 l/100 km
30.95 US mpg
37.17 UK mpg
13.16 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.7 l/100 km
50.05 US mpg
60.1 UK mpg
21.28 km/l
Fuel consumption (economy) – combined (NEDC) 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
CO2 emissions (NEDC) 152 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.5 sec
Acceleration 0 – 62 mph 10.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10 sec
Maximum speed 187 km/h
116.2 mph
Emission standard Euro 2
Weight-to-power ratio 11.9 kg/Hp, 84.3 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 204.8 Nm/tonne
Engine specs
Power 105 Hp @ 4000 rpm.
Power per litre 55 Hp/l
Torque 255 Nm @ 2000 rpm.
188.08 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code AR 32302
Engine displacement 1910 cm3
116.56 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 18.45:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.1 l
6.45 US qt | 5.37 UK qt

Space, Volume and weights
Kerb Weight 1245 kg
2744.76 lbs.
Max. weight 1765 kg
3891.16 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 380 l
13.42 cu. ft.
Trunk (boot) space – maximum 1225 l
43.26 cu. ft.
Fuel tank capacity 51 l
13.47 US gal | 11.22 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 350 kg
771.62 lbs.
Permitted towbar download 50 kg
110.23 lbs.
Dimensions
Length 4235 mm
166.73 in.
Width 1712 mm
67.4 in.
Height 1425 mm
56.1 in.
Wheelbase 2540 mm
100 in.
Front track 1459 mm
57.44 in.
Rear (Back) track 1428 mm
56.22 in.
Front overhang 871 mm
34.29 in.
Rear overhang 824 mm
32.44 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Transverse stabilizer, Trailing arm, Coil spring
Front brakes Disc, 257×11.8 mm
Rear brakes Drum, 203 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/55 R 15
Wheel rims size 6 J x 15
