Specifications: Alfa Romeo 147 5-doors 1.9 JTD (110 Hp) /2000, 2001

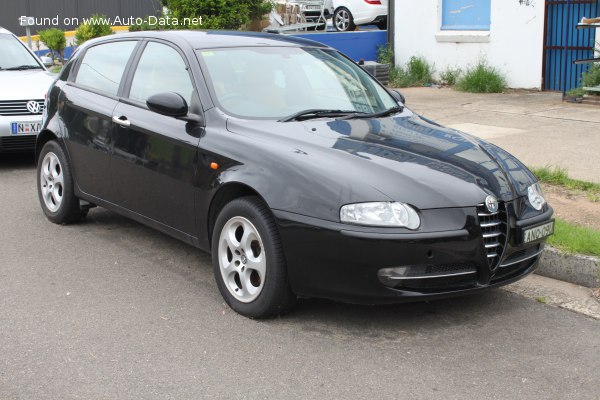

2001 Alfa Romeo 147 5-doors - Photo 1

Alfa Romeo 147 5-doors 1.9 JTD (110 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 147
Generation 147 5-doors
Modification (Engine) 1.9 JTD (110 Hp)
Start of production 2000 year
End of production 2001 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.7 l/100 km
30.55 US mpg
36.69 UK mpg
12.99 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50.05 US mpg
60.1 UK mpg
21.28 km/l
Fuel consumption (economy) – combined 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
CO2 emissions 152.3 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.5 sec
Acceleration 0 – 62 mph 10.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10 sec
Maximum speed 189 km/h
117.44 mph
Weight-to-power ratio 11.5 kg/Hp, 86.6 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 216.5 Nm/tonne
Engine specs
Power 110 Hp @ 4000 rpm.
Power per litre 57.6 Hp/l
Torque 275 Nm @ 2000 rpm.
202.83 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code AR 37101
Engine displacement 1910 cm3
116.56 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 90.4 mm
3.56 in.
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1270 kg
2799.87 lbs.
Max. weight 1790 kg
3946.27 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 280 l
9.89 cu. ft.
Trunk (boot) space – maximum 1030 l
36.37 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Dimensions
Length 4170 mm
164.17 in.
Width 1729 mm
68.07 in.
Height 1421 mm
55.94 in.
Wheelbase 2546 mm
100.24 in.
Front track 1509 mm
59.41 in.
Rear (Back) track 1494 mm
58.82 in.
Front overhang 921 mm
36.26 in.
Rear overhang 703 mm
27.68 in.
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent multi-link suspension, Transverse stabilizer
Rear suspension McPherson, Transverse stabilizer
Front brakes Ventilated discs, 284 mm
Rear brakes Disc, 251 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/65 R 15
