Specifications: Alfa Romeo 147 GTA 3.2 V6 (250 Hp) /2003, 2004, 2005, 2006

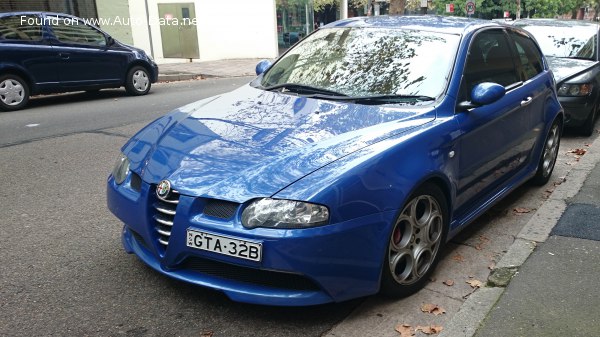

2004 Alfa Romeo 147 GTA - Photo 1

Alfa Romeo 147 GTA 3.2 V6 (250 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 147
Generation 147 GTA
Modification (Engine) 3.2 V6 (250 Hp)
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 18.1 l/100 km
13 US mpg
15.61 UK mpg
5.52 km/l
Fuel consumption (economy) – extra urban 8.6 l/100 km
27.35 US mpg
32.85 UK mpg
11.63 km/l
Fuel consumption (economy) – combined 12.1 l/100 km
19.44 US mpg
23.35 UK mpg
8.26 km/l
CO2 emissions 287 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.3 sec
Acceleration 0 – 62 mph 6.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6 sec
Maximum speed 246 km/h
152.86 mph
Weight-to-power ratio 5.4 kg/Hp, 183.8 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 220.6 Nm/tonne
Engine specs
Power 250 Hp @ 6200 rpm.
Power per litre 78.6 Hp/l
Torque 300 Nm @ 4800 rpm.
221.27 lb.-ft. @ 4800 rpm.
Engine layout Front, Transverse
Engine Model/Code 932 A.000
Engine displacement 3179 cm3
193.99 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 93 mm
3.66 in.
Piston Stroke 78 mm
3.07 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.9 l
6.23 US qt | 5.19 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.2 l
9.72 US qt | 8.09 UK qt

Space, Volume and weights
Kerb Weight 1360 kg
2998.29 lbs.
Max. weight 1880 kg
4144.69 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 280 l
9.89 cu. ft.
Trunk (boot) space – maximum 1030 l
36.37 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Dimensions
Length 4213 mm
165.87 in.
Width 1764 mm
69.45 in.
Height 1412 mm
55.59 in.
Wheelbase 2546 mm
100.24 in.
Front track 1516 mm
59.69 in.
Rear (Back) track 1504 mm
59.21 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/45 ZR 17
Wheel rims size 7.5J X 17
