Specifications: Alfa Romeo 156 (932, facelift 2003) 2.0 16V JTS (165 Hp) Selespeed 2003, 2004, 2005, 2006

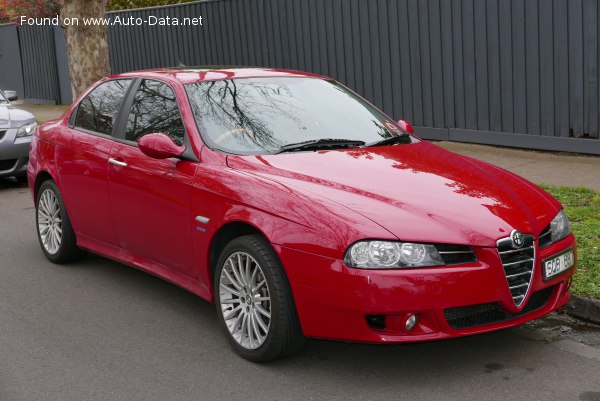

2003 Alfa Romeo 156 (932, facelift 2003) - Photo 1

Alfa Romeo 156 (932, facelift 2003) 2.0 16V JTS (165 Hp) Selespeed – Full specifications
General information
Brand Alfa Romeo
Model 156
Generation 156 (932, facelift 2003)
Modification (Engine) 2.0 16V JTS (165 Hp) Selespeed
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 12.2 l/100 km
19.28 US mpg
23.15 UK mpg
8.2 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.6 l/100 km
35.64 US mpg
42.8 UK mpg
15.15 km/l
Fuel consumption (economy) – combined (NEDC) 8.6 l/100 km
27.35 US mpg
32.85 UK mpg
11.63 km/l
CO2 emissions (NEDC) 205-206 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.2 sec
Acceleration 0 – 62 mph 8.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.8 sec
Maximum speed 220 km/h
136.7 mph
Emission standard Euro 4
Weight-to-power ratio 7.8 kg/Hp, 128.4 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 160.3 Nm/tonne
Engine specs
Power 165 Hp @ 6400 rpm.
Power per litre 83.8 Hp/l
Torque 206 Nm @ 3250 rpm.
151.94 lb.-ft. @ 3250 rpm.
Engine layout Front, Transverse
Engine Model/Code 937A1000
Engine displacement 1970 cm3
120.22 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 91 mm
3.58 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.9 l
7.29 US qt | 6.07 UK qt

Space, Volume and weights
Kerb Weight 1285 kg
2832.94 lbs.
Max. weight 1805 kg
3979.34 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 378 l
13.35 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4435 mm
174.61 in.
Width 1743 mm
68.62 in.
Height 1430 mm
56.3 in.
Wheelbase 2595 mm
102.17 in.
Front track 1511-1519 mm
59.49 – 59.8 in.
Rear (Back) track 1498-1506 mm
58.98 – 59.29 in.
Front overhang 952 mm
37.48 in.
Rear overhang 888 mm
34.96 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission Selespeed
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension McPherson, Transverse stabilizer
Front brakes Ventilated discs, 284 mm
Rear brakes Disc, 276 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16; 215/45 R17
Wheel rims size 6.5J x 16; 7J x 17
