Specifications: Alfa Romeo 159 3.2 JTS V6 (260 Hp) 2008, 2009

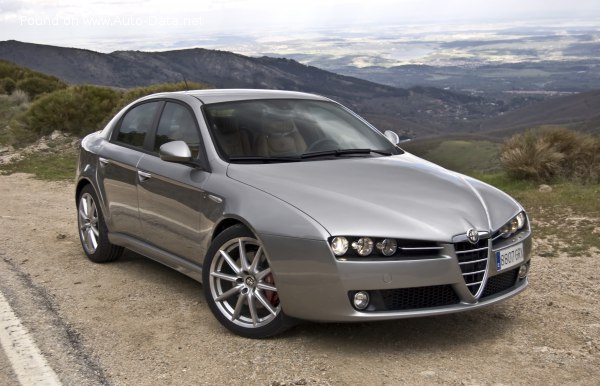

2005 Alfa Romeo 159 - Photo 1

Alfa Romeo 159 3.2 JTS V6 (260 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 159
Generation 159
Modification (Engine) 3.2 JTS V6 (260 Hp)
Start of production 2008 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 16.4 l/100 km
14.34 US mpg
17.22 UK mpg
6.1 km/l
Fuel consumption (economy) – extra urban 7.9 l/100 km
29.77 US mpg
35.76 UK mpg
12.66 km/l
Fuel consumption (economy) – combined 11 l/100 km
21.38 US mpg
25.68 UK mpg
9.09 km/l
CO2 emissions 260 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.1 sec
Acceleration 0 – 62 mph 7.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.7 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 4
Weight-to-power ratio 5.9 kg/Hp, 168.8 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 209.1 Nm/tonne
Engine specs
Power 260 Hp @ 6300 rpm.
Power per litre 81.4 Hp/l
Torque 322 Nm @ 4500 rpm.
237.5 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code 939 A.000
Engine displacement 3195 cm3
194.97 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 89 mm
3.5 in.
Piston Stroke 85.6 mm
3.37 in.
Compression ratio 11.25:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.4 l
5.71 US qt | 4.75 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.3 l
10.88 US qt | 9.06 UK qt

Space, Volume and weights
Kerb Weight 1540 kg
3395.12 lbs.
Max. weight 2090 kg
4607.66 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 405 l
14.3 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted towbar download 70 kg
154.32 lbs.
Dimensions
Length 4660 mm
183.46 in.
Width 1828 mm
71.97 in.
Height 1417-1422 mm
55.79 – 55.98 in.
Wheelbase 2700 mm
106.3 in.
Front track 1578 mm
62.13 in.
Rear (Back) track 1555 mm
61.22 in.
Front overhang 1000 mm
39.37 in.
Rear overhang 960 mm
37.8 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/50 R 17
Wheel rims size 7.5 J x 17
