Specifications: Alfa Romeo 159 Sportwagon 1.9 JTDM 16V (150 Hp) Q-Tronic 2006, 2007, 2008, 2009, 2010

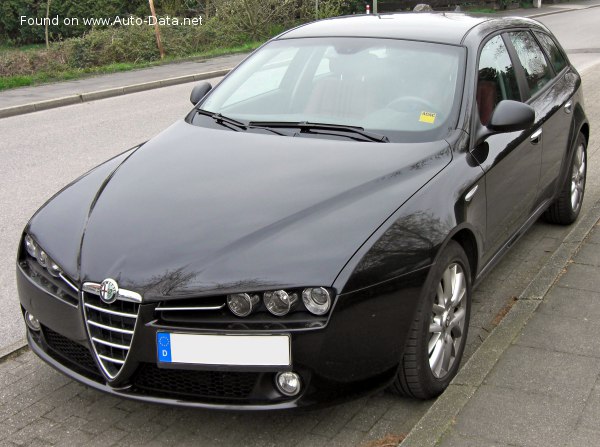

2006 Alfa Romeo 159 Sportwagon - Photo 1

Alfa Romeo 159 Sportwagon 1.9 JTDM 16V (150 Hp) Q-Tronic – Full specifications
General information
Brand Alfa Romeo
Model 159
Generation 159 Sportwagon
Modification (Engine) 1.9 JTDM 16V (150 Hp) Q-Tronic
Start of production 2006 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 9.9 l/100 km
23.76 US mpg
28.53 UK mpg
10.1 km/l
Fuel consumption (economy) – extra urban 5.5 l/100 km
42.77 US mpg
51.36 UK mpg
18.18 km/l
Fuel consumption (economy) – combined 7.1 l/100 km
33.13 US mpg
39.79 UK mpg
14.08 km/l
CO2 emissions 187 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.5 sec
Acceleration 0 – 62 mph 9.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9 sec
Maximum speed 209 km/h
129.87 mph
Emission standard Euro 4
Weight-to-power ratio 10.3 kg/Hp, 97.1 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 207.1 Nm/tonne
Engine specs
Power 150 Hp @ 4000 rpm.
Power per litre 78.5 Hp/l
Torque 320 Nm @ 2000 rpm.
236.02 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code 939 A2.000
Engine displacement 1910 cm3
116.56 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 18.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.5 l
7.93 US qt | 6.6 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1545 kg
3406.14 lbs.
Max. weight 2095 kg
4618.68 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 445 l
15.72 cu. ft.
Trunk (boot) space – maximum 1235 l
43.61 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4660 mm
183.46 in.
Width 1828 mm
71.97 in.
Height 1417-1422 mm
55.79 – 55.98 in.
Wheelbase 2700 mm
106.3 in.
Front track 1578 mm
62.13 in.
Rear (Back) track 1555 mm
61.22 in.
Front overhang 1000 mm
39.37 in.
Rear overhang 960 mm
37.8 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 305×28 mm
Rear brakes Disc, 278×12 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R 16
Wheel rims size 7 J x 16
