Specifications: Alfa Romeo 166 (936) 2.5 i V6 24V (188 Hp) /2001, 2002, 2003/

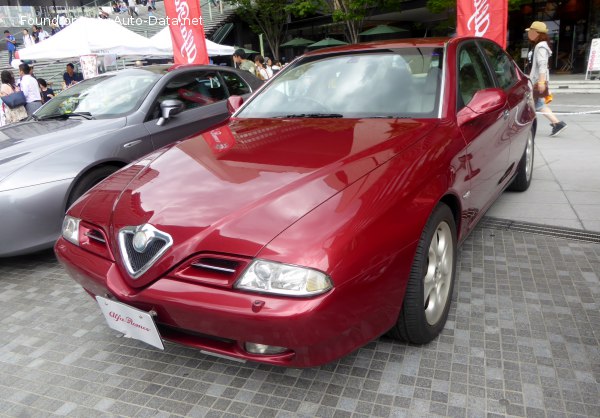

1998 Alfa Romeo 166 (936) - Photo 1

Alfa Romeo 166 (936) 2.5 i V6 24V (188 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 166
Generation 166 (936)
Modification (Engine) 2.5 i V6 24V (188 Hp)
Start of production 2001 year
End of production 2003 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 17.2 l/100 km
13.68 US mpg
16.42 UK mpg
5.81 km/l
Fuel consumption (economy) – extra urban 8.9 l/100 km
26.43 US mpg
31.74 UK mpg
11.24 km/l
Fuel consumption (economy) – combined 11.9 l/100 km
19.77 US mpg
23.74 UK mpg
8.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.4 sec
Acceleration 0 – 62 mph 8.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8 sec
Maximum speed 225 km/h
139.81 mph
Weight-to-power ratio 7.9 kg/Hp, 126.2 Hp/tonne
Weight-to-torque ratio 6.7 kg/Nm, 148.3 Nm/tonne
Engine specs
Power 188 Hp @ 6300 rpm.
Power per litre 75.4 Hp/l
Torque 221 Nm @ 5000 rpm.
163 lb.-ft. @ 5000 rpm.
Engine layout Front, Transverse
Engine Model/Code AR 34201
Engine displacement 2492 cm3
152.07 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 88 mm
3.46 in.
Piston Stroke 68.3 mm
2.69 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.5 l
11.1 US qt | 9.24 UK qt

Space, Volume and weights
Kerb Weight 1490 kg
3284.89 lbs.
Max. weight 2000 kg
4409.25 lbs.
Max load 510 kg
1124.36 lbs.
Trunk (boot) space – minimum 490 l
17.3 cu. ft.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Dimensions
Length 4720 mm
185.83 in.
Width 1815 mm
71.46 in.
Height 1416 mm
55.75 in.
Wheelbase 2700 mm
106.3 in.
Front track 1545 mm
60.83 in.
Rear (Back) track 1532 mm
60.31 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Several levers and rods
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16
Wheel rims size 6.5 X 16
