Specifications: Alfa Romeo 33 (907A) 1.4 i.e. (90 Hp) 1990, 1991, 1992, 1993, 1994

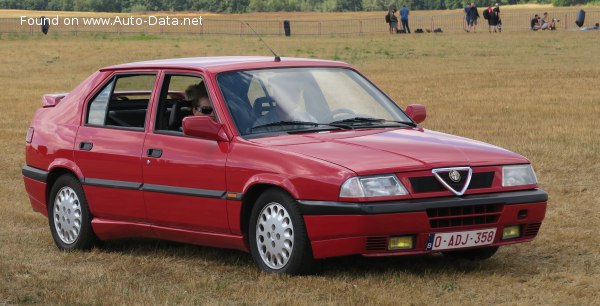

1990 Alfa Romeo 33 (907A) - Photo 1

Alfa Romeo 33 (907A) 1.4 i.e. (90 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 33
Generation 33 (907A)
Modification (Engine) 1.4 i.e. (90 Hp)
Start of production 1990 year
End of production 1994 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 9.5 l/100 km
24.76 US mpg
29.73 UK mpg
10.53 km/l
Fuel consumption (economy) – extra urban 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
Fuel consumption (economy) – combined 7.8 l/100 km
30.16 US mpg
36.22 UK mpg
12.82 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.5 sec
Acceleration 0 – 62 mph 11.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.9 sec
Maximum speed 178 km/h
110.6 mph
Weight-to-power ratio 10.4 kg/Hp, 95.7 Hp/tonne
Weight-to-torque ratio 8.1 kg/Nm, 123.4 Nm/tonne
Engine specs
Power 90 Hp @ 6000 rpm.
Power per litre 66.6 Hp/l
Torque 116 Nm @ 4500 rpm.
85.56 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code 307.32
Engine displacement 1351 cm3
82.44 cu. in.
Number of cylinders 4
Engine configuration Boxer
Cylinder Bore 80 mm
3.15 in.
Piston Stroke 67.2 mm
2.65 in.
Compression ratio 9.5:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.8 l
8.24 US qt | 6.86 UK qt

Space, Volume and weights
Kerb Weight 940 kg
2072.35 lbs.
Max. weight 1350 kg
2976.24 lbs.
Max load 410 kg
903.9 lbs.
Trunk (boot) space – minimum 400 l
14.13 cu. ft.
Trunk (boot) space – maximum 1200 l
42.38 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4075 mm
160.43 in.
Width 1615 mm
63.58 in.
Height 1350 mm
53.15 in.
Wheelbase 2475 mm
97.44 in.
Front track 1365 mm
53.74 in.
Rear (Back) track 1365 mm
53.74 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 165/70 R13
