Specifications: Alfa Romeo 33 Stradale 2.0 V8 (230 Hp) 1967, 1968, 1969

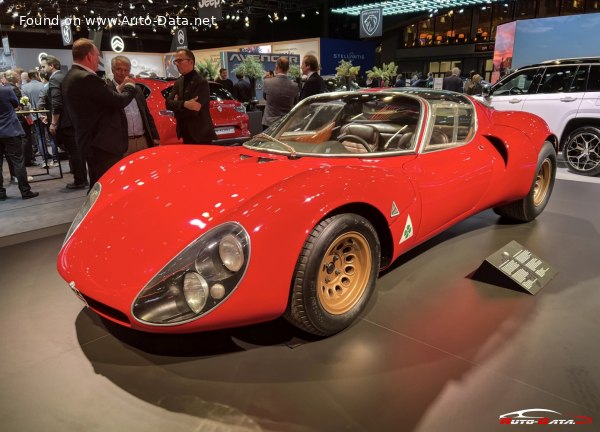

1967 Alfa Romeo 33 Stradale - Photo 1

Alfa Romeo 33 Stradale 2.0 V8 (230 Hp) – Full specifications
General information
Brand Alfa Romeo
Model 33
Generation 33 Stradale
Modification (Engine) 2.0 V8 (230 Hp)
Start of production 1967 year
End of production 1969 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.5 sec
Acceleration 0 – 62 mph 5.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.2 sec
Maximum speed 260 km/h
161.56 mph
Weight-to-power ratio 3 kg/Hp, 328.6 Hp/tonne
Weight-to-torque ratio 3.5 kg/Nm, 285.7 Nm/tonne
Engine specs
Power 230 Hp @ 8800 rpm.
Power per litre 115.3 Hp/l
Torque 200 Nm @ 7000 rpm.
147.51 lb.-ft. @ 7000 rpm.
Maximum engine speed 10000 rpm.
Engine layout Middle, Longitudinal
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 78 mm
3.07 in.
Compression ratio 10.1:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 700 kg
1543.24 lbs.
Fuel tank capacity 95 l
25.1 US gal | 20.9 UK gal
Dimensions
Length 3970 mm
156.3 in.
Width 1710 mm
67.32 in.
Height 990 mm
38.98 in.
Wheelbase 2350 mm
92.52 in.
Front track 1350 mm
53.15 in.
Rear (Back) track 1445 mm
56.89 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission Colotti
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Steering type Steering rack and pinion
Wheel rims size 13
