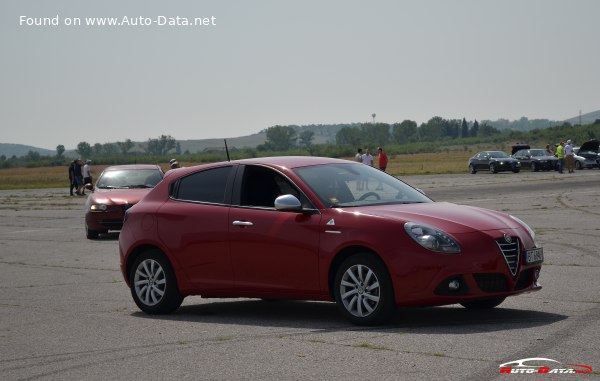

2011 Alfa Romeo Giulietta (Type 940) - Photo 1

Alfa Romeo Giulietta (Type 940) 2.0 JTDM (140 Hp) – Full specifications
General information
Brand Alfa Romeo
Model Giulietta
Generation Giulietta (Type 940)
Modification (Engine) 2.0 JTDM (140 Hp)
Start of production 2010 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.6 l/100 km
42 US mpg
50.44 UK mpg
17.86 km/l
Fuel consumption (economy) – extra urban 3.9 l/100 km
60.31 US mpg
72.43 UK mpg
25.64 km/l
Fuel consumption (economy) – combined 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
CO2 emissions 119 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9 sec
Acceleration 0 – 62 mph 9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.6 sec
Maximum speed 205 km/h
127.38 mph
Emission standard Euro 5
Weight-to-power ratio 9.4 kg/Hp, 106.1 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 242.4 Nm/tonne
Engine specs
Power 140 Hp @ 3750 rpm.
Power per litre 71.6 Hp/l
Torque 320 Nm @ 1500 rpm.
236.02 lb.-ft. @ 1500 rpm.
Engine layout Front, Transverse
Engine Model/Code 940A5000
Engine displacement 1956 cm3
119.36 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1320 kg
2910.1 lbs.
Max. weight 1825 kg
4023.44 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4351 mm
171.3 in.
Width 1798 mm
70.79 in.
Height 1465 mm
57.68 in.
Wheelbase 2634 mm
103.7 in.
Front track 1554 mm
61.18 in.
Rear (Back) track 1554 mm
61.18 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16 91V
Wheel rims size 7J x 16
