Specifications: Alfa Romeo Spider (916) 3.0 V6 (218 Hp) 2000, 2001, 2002, 2003

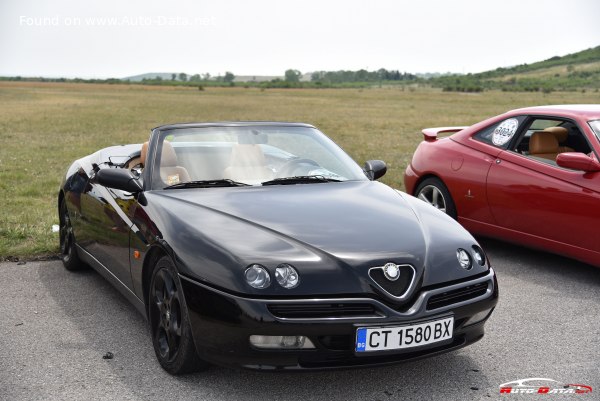

1995 Alfa Romeo Spider (916) - Photo 1

Alfa Romeo Spider (916) 3.0 V6 (218 Hp) – Full specifications
General information
Brand Alfa Romeo
Model Spider
Generation Spider (916)
Modification (Engine) 3.0 V6 (218 Hp)
Start of production 2000 year
End of production 2003 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 16.8 l/100 km
14 US mpg
16.81 UK mpg
5.95 km/l
Fuel consumption (economy) – extra urban 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.8 sec
Acceleration 0 – 62 mph 6.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.5 sec
Maximum speed 235 km/h
146.02 mph
Weight-to-power ratio 6.5 kg/Hp, 153.5 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 186.6 Nm/tonne
Engine specs
Power 218 Hp @ 6300 rpm.
Power per litre 73.7 Hp/l
Torque 265 Nm @ 5000 rpm.
195.45 lb.-ft. @ 5000 rpm.
Engine layout Front, Transverse
Engine Model/Code AR 16102
Engine displacement 2959 cm3
180.57 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 93 mm
3.66 in.
Piston Stroke 72.6 mm
2.86 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.9 l
6.23 US qt | 5.19 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.7 l
12.36 US qt | 10.29 UK qt

Space, Volume and weights
Kerb Weight 1420 kg
3130.56 lbs.
Max. weight 1680 kg
3703.77 lbs.
Max load 260 kg
573.2 lbs.
Trunk (boot) space – minimum 147 l
5.19 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4285 mm
168.7 in.
Width 1780 mm
70.08 in.
Height 1315 mm
51.77 in.
Wheelbase 2540 mm
100 in.
Front track 1510 mm
59.45 in.
Rear (Back) track 1530 mm
60.24 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/45 R17
