Specifications: Alfa Romeo Spider (916, facelift 2003) 2.0 Twin Spark (150 Hp) 2003, 2004

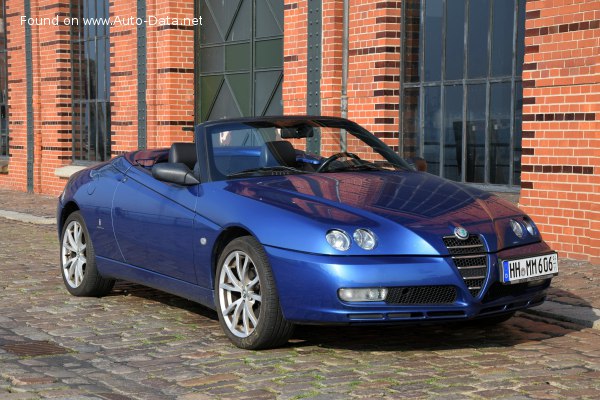

2003 Alfa Romeo Spider (916, facelift 2003) - Photo 1

Alfa Romeo Spider (916, facelift 2003) 2.0 Twin Spark (150 Hp) – Full specifications
General information
Brand Alfa Romeo
Model Spider
Generation Spider (916, facelift 2003)
Modification (Engine) 2.0 Twin Spark (150 Hp)
Start of production 2003 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban (NEDC) 13.3 l/100 km
17.69 US mpg
21.24 UK mpg
7.52 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.8 l/100 km
34.59 US mpg
41.54 UK mpg
14.71 km/l
Fuel consumption (economy) – combined (NEDC) 9.2 l/100 km
25.57 US mpg
30.7 UK mpg
10.87 km/l
CO2 emissions (NEDC) 220 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.5 sec
Acceleration 0 – 62 mph 8.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.1 sec
Maximum speed 210 km/h
130.49 mph
Emission standard Euro 3
Weight-to-power ratio 9.4 kg/Hp, 106.8 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 128.8 Nm/tonne
Engine specs
Power 150 Hp @ 6300 rpm.
Power per litre 76.1 Hp/l
Torque 181 Nm @ 3800 rpm.
133.5 lb.-ft. @ 3800 rpm.
Engine layout Front, Transverse
Engine Model/Code AR 32310
Engine displacement 1970 cm3
120.22 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 91 mm
3.58 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.4 l
8.88 US qt | 7.39 UK qt

Space, Volume and weights
Kerb Weight 1405 kg
3097.49 lbs.
Max. weight 1665 kg
3670.7 lbs.
Max load 260 kg
573.2 lbs.
Trunk (boot) space – minimum 147 l
5.19 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Dimensions
Length 4299 mm
169.25 in.
Width 1776 mm
69.92 in.
Height 1315 mm
51.77 in.
Wheelbase 2540 mm
100 in.
Front track 1506 mm
59.29 in.
Rear (Back) track 1499 mm
59.02 in.
Front overhang 989 mm
38.94 in.
Rear overhang 770 mm
30.31 in.
Drag coefficient (Cd) 0.38
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs, 284 mm
Rear brakes Disc, 240 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/50 R16
Wheel rims size 7J x 16
