Specifications: Alfa Romeo Spider (939) 2.4 JTDM (210 Hp) 2008, 2009, 2010

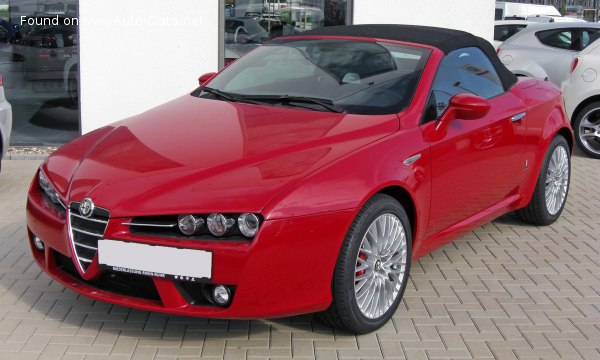

2006 Alfa Romeo Spider (939) - Photo 1

Alfa Romeo Spider (939) 2.4 JTDM (210 Hp) – Full specifications
General information
Brand Alfa Romeo
Model Spider
Generation Spider (939)
Modification (Engine) 2.4 JTDM (210 Hp)
Start of production 2008 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 9.2 l/100 km
25.57 US mpg
30.7 UK mpg
10.87 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel consumption (economy) – combined 6.8 l/100 km
34.59 US mpg
41.54 UK mpg
14.71 km/l
CO2 emissions 179 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.1 sec
Acceleration 0 – 62 mph 8.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.7 sec
Maximum speed 231 km/h
143.54 mph
Emission standard Euro 4
Weight-to-power ratio 7.8 kg/Hp, 128.4 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 244.6 Nm/tonne
Engine specs
Power 210 Hp @ 4000 rpm.
Power per litre 88 Hp/l
Torque 400 Nm @ 1500 rpm.
295.02 lb.-ft. @ 1500 rpm.
Engine layout Front, Transverse
Engine Model/Code 939A9000
Engine displacement 2387 cm3
145.66 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 17:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.4 l
6.76 US qt | 5.63 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.35 l
7.77 US qt | 6.47 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1635 kg
3604.56 lbs.
Max. weight 1985 kg
4376.18 lbs.
Max load 350 kg
771.62 lbs.
Trunk (boot) space – minimum 253 l
8.93 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4393 mm
172.95 in.
Width 1830 mm
72.05 in.
Width including mirrors 2035 mm
80.12 in.
Height 1318 mm
51.89 in.
Wheelbase 2528 mm
99.53 in.
Front track 1579 mm
62.17 in.
Rear (Back) track 1559 mm
61.38 in.
Front overhang 1000 mm
39.37 in.
Rear overhang 865 mm
34.06 in.
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 330×28 mm
Rear brakes Ventilated discs, 292×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/50 R 17
Wheel rims size 7.5 J x 17
