Specifications: Alfa Romeo Stelvio (949, facelift 2022) 2.0 Turbo (280 Hp) Q4 Automatic 2022, 2023, 2024, 2025

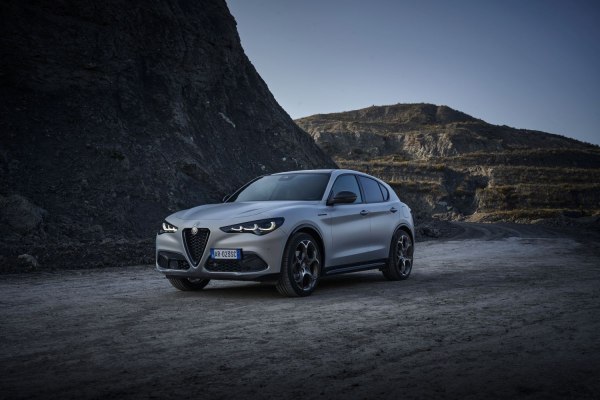

2023 Alfa Romeo Stelvio (949, facelift 2022) - Photo 1

Alfa Romeo Stelvio (949, facelift 2022) 2.0 Turbo (280 Hp) Q4 Automatic – Full specifications
General information
Brand Alfa Romeo
Model Stelvio
Generation Stelvio (949, facelift 2022)
Modification (Engine) 2.0 Turbo (280 Hp) Q4 Automatic
Start of production October, 2022 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 8.4-8.9 l/100 km
28 – 26.43 US mpg
33.63 – 31.74 UK mpg
11.9 – 11.24 km/l
CO2 emissions (WLTP) 191-203 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.7 sec
Acceleration 0 – 62 mph 5.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.4 sec
Maximum speed 230 km/h
142.92 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 6 kg/Hp, 166.7 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 238.1 Nm/tonne
Engine specs
Power 280 Hp @ 5250 rpm.
Power per litre 140.4 Hp/l
Torque 400 Nm @ 2250 rpm.
295.02 lb.-ft. @ 2250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 55273835
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain MultiAir
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.6 l
10.14 US qt | 8.45 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1680 kg
3703.77 lbs.
Max. weight 2350 kg
5180.86 lbs.
Max load 670 kg
1477.1 lbs.
Trunk (boot) space – minimum 525 l
18.54 cu. ft.
Trunk (boot) space – maximum 1600 l
56.5 cu. ft.
Fuel tank capacity 64 l
16.91 US gal | 14.08 UK gal
Permitted trailer load with brakes (12%) 2300 kg
5070.63 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 95 kg
209.44 lbs.
Dimensions
Length 4687 mm
184.53 in.
Width 1903 mm
74.92 in.
Width including mirrors 2163 mm
85.16 in.
Height 1693 mm
66.65 in.
Wheelbase 2818 mm
110.94 in.
Front track 1627 mm
64.06 in.
Rear (Back) track 1674 mm
65.91 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 12 m
39.37 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission ZF
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 330×28 mm
Rear brakes Ventilated discs, 320×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R19 101Y
Wheel rims size 8J x 19 ET34
