Specifications: Alfa Romeo SZ 3.0 V6 Zagato (210 Hp) 1989, 1990, 1991

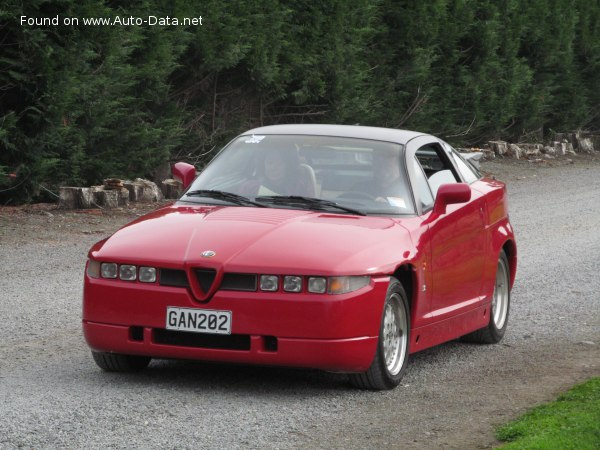

1990 Alfa Romeo SZ - Photo 1

Alfa Romeo SZ 3.0 V6 Zagato (210 Hp) – Full specifications
General information
Brand Alfa Romeo
Model SZ
Generation SZ
Modification (Engine) 3.0 V6 Zagato (210 Hp)
Start of production 1989 year
End of production 1991 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 13.2 l/100 km
17.82 US mpg
21.4 UK mpg
7.58 km/l
Fuel consumption (economy) – extra urban 7.7 l/100 km
30.55 US mpg
36.69 UK mpg
12.99 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7 sec
Acceleration 0 – 62 mph 7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.7 sec
Maximum speed 245 km/h
152.24 mph
Weight-to-power ratio 6 kg/Hp, 166.7 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 194.4 Nm/tonne
Engine specs
Power 210 Hp @ 6200 rpm.
Power per litre 71 Hp/l
Torque 245 Nm @ 4500 rpm.
180.7 lb.-ft. @ 4500 rpm.
Engine Model/Code 615.01
Engine displacement 2959 cm3
180.57 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 93 mm
3.66 in.
Piston Stroke 72.6 mm
2.86 in.
Compression ratio 10:1
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 6 l
6.34 US qt | 5.28 UK qt
Coolant 10 l
10.57 US qt | 8.8 UK qt

Space, Volume and weights
Kerb Weight 1260 kg
2777.82 lbs.
Max. weight 1430 kg
3152.61 lbs.
Max load 170 kg
374.79 lbs.
Trunk (boot) space – minimum 68 l
2.4 cu. ft.
Trunk (boot) space – maximum 350 l
12.36 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 4060 mm
159.84 in.
Width 1730 mm
68.11 in.
Height 1310 mm
51.57 in.
Wheelbase 2510 mm
98.82 in.
Minimum turning circle (turning diameter) 10.1 m
33.14 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Tires size 205/55 ZR 16V; 225/55 ZR16V
