Specifications: Alfa Romeo Tonale 1.3 T MultiAir (190 Hp) Plug-in Hybrid eQ4 Automatic 2022, 2023, 2024, 2025

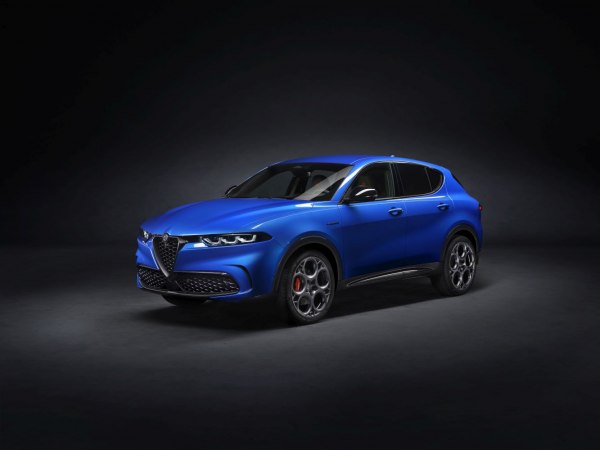

2022 Alfa Romeo Tonale - Photo 1

Alfa Romeo Tonale 1.3 T MultiAir (190 Hp) Plug-in Hybrid eQ4 Automatic – Full specifications
General information
Brand Alfa Romeo
Model Tonale
Generation Tonale
Modification (Engine) 1.3 T MultiAir (190 Hp) Plug-in Hybrid eQ4 Automatic
Start of production 2022 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 1.1-1.4 l/100 km
213.83 – 168.01 US mpg
256.8 – 201.77 UK mpg
90.91 – 71.43 km/l
CO2 emissions (WLTP) 29-32 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 7.1 sec
Acceleration 0 – 62 mph 7.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.7 sec
Maximum speed 190 km/h
118.06 mph
Weight-to-power ratio 9.9 kg/Hp, 101.3 Hp/tonne
Weight-to-torque ratio 6.9 kg/Nm, 144 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 15.5 kWh
Net (usable) battery capacity 12 kWh
Battery voltage 304 V
Battery technology Lithium-ion (Li-Ion)
Battery location In the central tunnel
All-electric range 62-70 km
38.53 – 43.5 mi
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 95 Hp
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 190 Hp
Internal combustion engine specs
Power 130 Hp @ 5500 rpm.
Power per litre 97.6 Hp/l
Torque 270 Nm @ 1850 rpm.
199.14 lb.-ft. @ 1850 rpm.
Engine layout Front, Transverse
Engine Model/Code 46337540
Engine displacement 1332 cm3
81.28 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 70 mm
2.76 in.
Piston Stroke 86.5 mm
3.41 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.3 l
5.6 US qt | 4.66 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1875 kg
4133.67 lbs.
Max. weight 2420 kg
5335.19 lbs.
Max load 545 kg
1201.52 lbs.
Trunk (boot) space – minimum 385 l
13.6 cu. ft.
Trunk (boot) space – maximum 1430 l
50.5 cu. ft.
Fuel tank capacity 42.5 l
11.23 US gal | 9.35 UK gal
Max. roof load 50 kg
110.23 lbs.
Permitted trailer load with brakes (12%) 1250 kg
2755.78 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4528 mm
178.27 in.
Width 1841 mm
72.48 in.
Width including mirrors 2082 mm
81.97 in.
Height 1601 mm
63.03 in.
Wheelbase 2636 mm
103.78 in.
Front track 1579-1580 mm
62.17 – 62.2 in.
Rear (Back) track 1572-1574 mm
61.89 – 61.97 in.
Front overhang 951 mm
37.44 in.
Rear overhang 941 mm
37.05 in.
Ride height (ground clearance) 144-146 mm
5.67 – 5.75 in.
Minimum turning circle (turning diameter) 11.57 m
37.96 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) permanently drives the front wheels of the vehicle, the electric motor drives the rear wheels of the vehicle, capable of running in full electric mode, only by the Internal combustion engine (ICE) or in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension McPherson
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/50 R18; 235/45 R19; 235/40 R20
Wheel rims size 7.5J x 18; 8J x 19; 8J x 20
