Specifications: Alpina B10 (E39) 4.8 i V8 32V (375 Hp) 2002, 2003

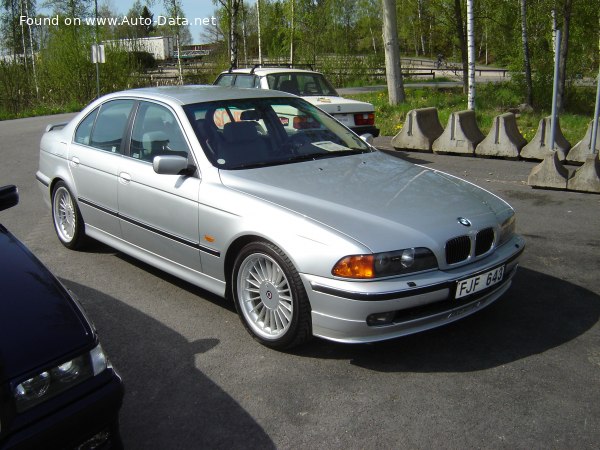

1997 Alpina B10 (E39) - Photo 1

Alpina B10 (E39) 4.8 i V8 32V (375 Hp) – Full specifications
General information
Brand Alpina
Model B10
Generation B10 (E39)
Modification (Engine) 4.8 i V8 32V (375 Hp)
Start of production 2002 year
End of production 2003 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 18 l/100 km
13.07 US mpg
15.69 UK mpg
5.56 km/l
Fuel consumption (economy) – extra urban 9 l/100 km
26.13 US mpg
31.39 UK mpg
11.11 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.4 sec
Acceleration 0 – 62 mph 5.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.1 sec
Maximum speed 284 km/h
176.47 mph
Weight-to-power ratio 4.5 kg/Hp, 221.9 Hp/tonne
Weight-to-torque ratio 3.3 kg/Nm, 301.8 Nm/tonne
Engine specs
Power 375 Hp @ 5800 rpm.
Power per litre 77.5 Hp/l
Torque 510 Nm @ 3800 rpm.
376.16 lb.-ft. @ 3800 rpm.
Engine layout Front, Longitudinal
Engine displacement 4837 cm3
295.17 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 93 mm
3.66 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 1690 kg
3725.81 lbs.
Max. weight 2260 kg
4982.45 lbs.
Max load 570 kg
1256.63 lbs.
Trunk (boot) space – minimum 460 l
16.24 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4775 mm
187.99 in.
Width 1800 mm
70.87 in.
Height 1415 mm
55.71 in.
Wheelbase 2830 mm
111.42 in.
Front track 1512 mm
59.53 in.
Rear (Back) track 1518 mm
59.76 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 235/40 ZR 18; 265/35 ZR 18
Wheel rims size 9J x 18
