Specifications: Alpina B3 (E90) 3.0i Biturbo (360 Hp) Switch-Tronic 2007, 2008, 2009, 2010, 2011, 2012, 2013

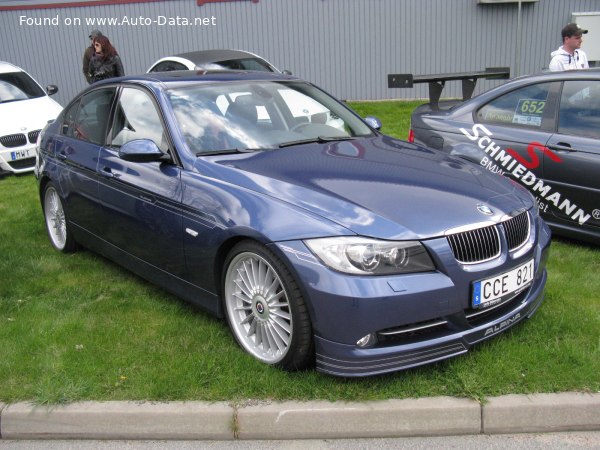

2007 Alpina B3 (E90) - Photo 1

Alpina B3 (E90) 3.0i Biturbo (360 Hp) Switch-Tronic – Full specifications
General information
Brand Alpina
Model B3
Generation B3 (E90)
Modification (Engine) 3.0i Biturbo (360 Hp) Switch-Tronic
Start of production 2007 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 14.1 l/100 km
16.68 US mpg
20.03 UK mpg
7.09 km/l
Fuel consumption (economy) – extra urban 7.3 l/100 km
32.22 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – combined 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.8 sec
Acceleration 0 – 62 mph 4.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.6 sec
Maximum speed 285 km/h
177.09 mph
Emission standard Euro 5
Weight-to-power ratio 4.6 kg/Hp, 218.8 Hp/tonne
Weight-to-torque ratio 3.3 kg/Nm, 304 Nm/tonne
Engine specs
Power 360 Hp @ 5500-6000 rpm.
Power per litre 120.8 Hp/l
Torque 500 Nm @ 3800-5000 rpm.
368.78 lb.-ft. @ 3800-5000 rpm.
Engine layout Front, Longitudinal
Engine displacement 2979 cm3
181.79 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 89.6 mm
3.53 in.
Compression ratio 9.4:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 1645 kg
3626.6 lbs.
Max. weight 2090 kg
4607.66 lbs.
Max load 445 kg
981.06 lbs.
Trunk (boot) space – minimum 450 l
15.89 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Dimensions
Length 4545 mm
178.94 in.
Width 1817 mm
71.54 in.
Height 1422 mm
55.98 in.
Wheelbase 2760 mm
108.66 in.
Front track 1500 mm
59.06 in.
Rear (Back) track 1513 mm
59.57 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 245/40 R18ZR; 265/40 R18ZR
