Specifications: Alpina D5 Touring (G31, facelift 2020) S 3.0 (408 Hp) AWD Switch-Tronic 2020, 2021, 2022, 2023, 2024, 2025

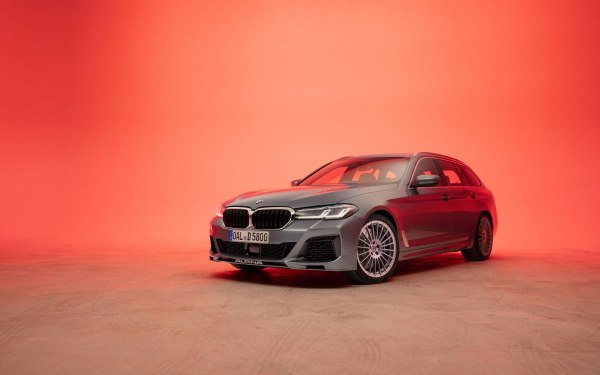

2020 Alpina D5 Touring (G31, facelift 2020) - Photo 1

Alpina D5 Touring (G31, facelift 2020) S 3.0 (408 Hp) AWD Switch-Tronic – Full specifications
General information
Brand Alpina
Model D5
Generation D5 Touring (G31, facelift 2020)
Modification (Engine) S 3.0 (408 Hp) AWD Switch-Tronic
Start of production October, 2020 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
CO2 emissions (WLTP) 227 g/km
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 8.1 l/100 km
29.04 US mpg
34.87 UK mpg
12.35 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 6.5 l/100 km
36.19 US mpg
43.46 UK mpg
15.38 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 7.1 l/100 km
33.13 US mpg
39.79 UK mpg
14.08 km/l
CO2 emissions (NEDC, WLTP equivalent) 187 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 4.6 sec
Acceleration 0 – 62 mph 4.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.4 sec
Maximum speed 283 km/h
175.85 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 5.1 kg/Hp, 194.7 Hp/tonne
Weight-to-torque ratio 2.6 kg/Nm, 381.9 Nm/tonne
Engine specs
Power 408 Hp @ 4000-5000 rpm.
Power per litre 136.3 Hp/l
Torque 800 Nm @ 1750-2750 rpm.
590.05 lb.-ft. @ 1750-2750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code B57D30
Engine displacement 2993 cm3
182.64 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 16:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2095 kg
4618.68 lbs.
Max. weight 2620 kg
5776.11 lbs.
Max load 525 kg
1157.43 lbs.
Trunk (boot) space – minimum 560 l
19.78 cu. ft.
Trunk (boot) space – maximum 1700 l
60.03 cu. ft.
Fuel tank capacity 66 l
17.44 US gal | 14.52 UK gal
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4978 mm
195.98 in.
Width 1868 mm
73.54 in.
Width including mirrors 2126 mm
83.7 in.
Height 1466 mm
57.72 in.
Wheelbase 2975 mm
117.13 in.
Front track 1611 mm
63.43 in.
Rear (Back) track 1596 mm
62.83 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Switch-Tronic
Front brakes Ventilated discs, 395 mm
Rear brakes Ventilated discs, 398 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 255/35 ZR20
Rear wheel tires: 285/30 ZR20
Wheel rims size Front wheel rims: 8.5J x 20
Rear wheel rims: 10J x 20
