Specifications: Alpina XB7 (facelift 2022) Manufaktur 4.4 V8 (621 Hp) Mild Hybrid xDrive Switch-Tronic 2024, 2025

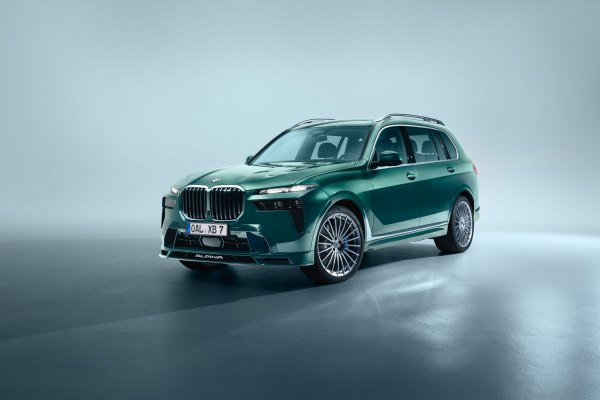

2023 Alpina XB7 (facelift 2022) - Photo 1

Alpina XB7 (facelift 2022) Manufaktur 4.4 V8 (621 Hp) Mild Hybrid xDrive Switch-Tronic – Full specifications
General information
Brand Alpina
Model XB7
Generation XB7 (facelift 2022)
Modification (Engine) Manufaktur 4.4 V8 (621 Hp) Mild Hybrid xDrive Switch-Tronic
Start of production September, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type SAV
Seats 6-7
Doors 5
Performance specs
Combined fuel consumption (WLTP) 12.8 l/100 km
18.38 US mpg
22.07 UK mpg
7.81 km/l
CO2 emissions (WLTP) 289 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.2 sec
Acceleration 0 – 62 mph 4.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4 sec
Acceleration 0 – 200 km/h 14.8 sec
Maximum speed 290 km/h
180.2 mph
Emission standard Euro 6e
Weight-to-power ratio 4.3 kg/Hp, 233.9 Hp/tonne
Weight-to-torque ratio 3.3 kg/Nm, 301.3 Nm/tonne
Electric cars and hybrids specs
Battery voltage 48 V
Electric motor 1
Electric motor location Between the combustion engine and the transmission
Internal combustion engine specs
Power 621 Hp @ 5500-6500 rpm.
Power per litre 141.3 Hp/l
Torque 800 Nm @ 1800-5400 rpm.
590.05 lb.-ft. @ 1800-5400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code S68B44T0
Engine displacement 4395 cm3
268.2 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 89 mm
3.5 in.
Piston Stroke 88.3 mm
3.48 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration 2 x Twin-scroll turbo, Intercooler
Valvetrain Double-VANOS, VALVETRONIC
Engine oil capacity 10.75 l
11.36 US qt | 9.46 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2655 kg
5853.27 lbs.
Max. weight 3355 kg
7396.51 lbs.
Max load 700 kg
1543.24 lbs.
Trunk (boot) space – minimum 750 l
26.49 cu. ft.
Trunk (boot) space – maximum 2120 l
74.87 cu. ft.
Fuel tank capacity 83 l
21.93 US gal | 18.26 UK gal
Permitted trailer load with brakes (12%) 3500 kg
7716.18 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 5195 mm
204.53 in.
Width 2000 mm
78.74 in.
Width including mirrors 2218 mm
87.32 in.
Height 1797 mm
70.75 in.
Wheelbase 3105 mm
122.24 in.
Front track 1682 mm
66.22 in.
Rear (Back) track 1703 mm
67.05 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work only in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Switch-Tronic
Front suspension Double wishbone, Transverse stabilizer, Air suspension
Rear suspension Independent multi-link suspension, Air suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
4-wheel steering (4WS, active rear steering)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 285/35 ZR23
Rear wheel tires: 325/30 ZR23
Wheel rims size Front wheel rims: 9.5J x 23
Rear wheel rims: 11J x 23
