Specifications: Alpina XD3 (G01 LCI, facelift 2021) 3.0d (394 Hp) xDrive Switch-Tronic 2021, 2022, 2023, 2024, 2025

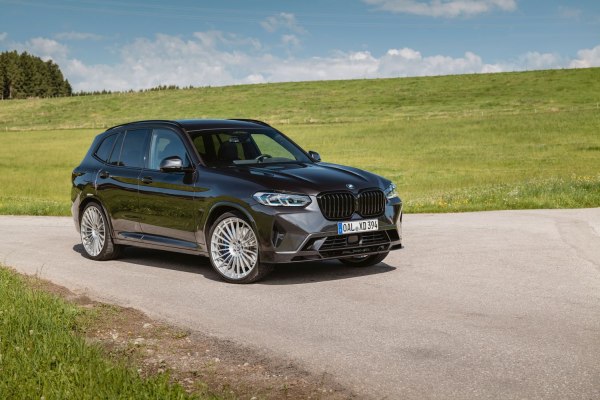

2022 Alpina XD3 (G01 LCI, facelift 2021) - Photo 1

Alpina XD3 (G01 LCI, facelift 2021) 3.0d (394 Hp) xDrive Switch-Tronic – Full specifications
General information
Brand Alpina
Model XD3
Generation XD3 (G01 LCI, facelift 2021)
Modification (Engine) 3.0d (394 Hp) xDrive Switch-Tronic
Start of production November, 2021 year
Powertrain Architecture Internal Combustion engine
Body type SAV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 8.6 l/100 km
27.35 US mpg
32.85 UK mpg
11.63 km/l
CO2 emissions (WLTP) 224 g/km
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 8.3 l/100 km
28.34 US mpg
34.03 UK mpg
12.05 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 6.4 l/100 km
36.75 US mpg
44.14 UK mpg
15.63 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 7.1 l/100 km
33.13 US mpg
39.79 UK mpg
14.08 km/l
CO2 emissions (NEDC, WLTP equivalent) 187 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 4.6 sec
Acceleration 0 – 62 mph 4.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.4 sec
Acceleration 0 – 200 km/h 17.9 sec
Maximum speed 267 km/h
165.91 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 5.3 kg/Hp, 190.3 Hp/tonne
Weight-to-torque ratio 2.6 kg/Nm, 386.5 Nm/tonne
Engine specs
Power 394 Hp @ 4000-5000 rpm.
Power per litre 131.6 Hp/l
Torque 800 Nm @ 1750-3000 rpm.
590.05 lb.-ft. @ 1750-3000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code B57D30C
Engine displacement 2993 cm3
182.64 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 16:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration 4 Turbochargers, Intercooler
Valvetrain DOHC
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2070 kg
4563.57 lbs.
Max. weight 2580 kg
5687.93 lbs.
Max load 510 kg
1124.36 lbs.
Trunk (boot) space – minimum 550 l
19.42 cu. ft.
Trunk (boot) space – maximum 1600 l
56.5 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
AdBlue tank 20 l
5.28 US gal | 4.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2400 kg
5291.09 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4715 mm
185.63 in.
Width 1897 mm
74.69 in.
Width including mirrors 2138 mm
84.17 in.
Height 1665 mm
65.55 in.
Wheelbase 2864 mm
112.76 in.
Front track 1619 mm
63.74 in.
Rear (Back) track 1598 mm
62.91 in.
Ride height (ground clearance) 204 mm
8.03 in.
Minimum turning circle (turning diameter) 12.1 m
39.7 ft.
Approach angle 25.7°
Departure angle 22.6°
Ramp-over (brakeover) angle 19.4°
Wading depth 500 mm
19.69 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Switch-Tronic
Front suspension Spring Strut
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 395 mm
Rear brakes Ventilated discs, 398 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 255/45 ZR20; 255/35 ZR22
Rear wheel tires: 285/40 ZR20; 295/30 ZR22
Wheel rims size Front wheel rims: 8.5J x 20; 9J x 22
Rear wheel rims: 10J x 20; 10J x 22
