Specifications: Asia Rocsta 1.8 i 4×4 (86 Hp) 1993, 1994, 1995, 1996, 1997

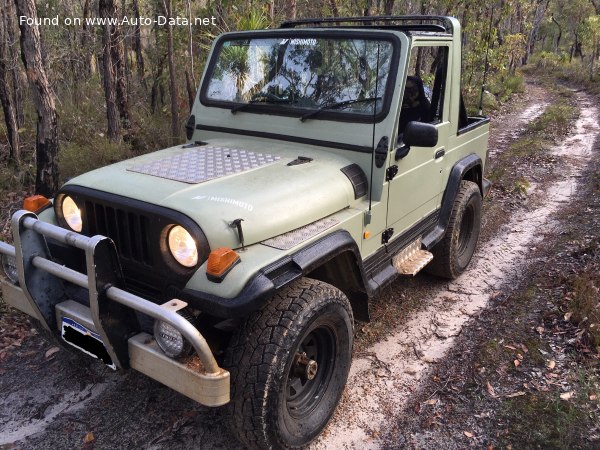

1990 Asia Rocsta - Photo 1

Asia Rocsta 1.8 i 4×4 (86 Hp) – Full specifications
General information
Brand Asia
Model Rocsta
Generation Rocsta
Modification (Engine) 1.8 i 4×4 (86 Hp)
Start of production 1993 year
End of production 1997 year
Powertrain Architecture Internal Combustion engine
Body type Off-road vehicle
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – combined 12.2 l/100 km
19.28 US mpg
23.15 UK mpg
8.2 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 16 sec
Acceleration 0 – 62 mph 16 sec
Acceleration 0 – 60 mph 1.9 sec
Maximum speed 127 km/h
78.91 mph
Weight-to-power ratio 15.5 kg/Hp, 64.7 Hp/tonne
Weight-to-torque ratio 9.9 kg/Nm, 101.5 Nm/tonne
Engine specs
Power 86 Hp @ 5500 rpm.
Power per litre 48.1 Hp/l
Torque 135 Nm @ 3500 rpm.
99.57 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine displacement 1789 cm3
109.17 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 77 mm
3.03 in.
Compression ratio 8:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain OHC

Space, Volume and weights
Kerb Weight 1330 kg
2932.15 lbs.
Max. weight 1700 kg
3747.86 lbs.
Max load 370 kg
815.71 lbs.
Trunk (boot) space – minimum 110 l
3.88 cu. ft.
Trunk (boot) space – maximum 470 l
16.6 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Dimensions
Length 3585 mm
141.14 in.
Width 1690 mm
66.54 in.
Height 1820 mm
71.65 in.
Wheelbase 2130 mm
83.86 in.
Front track 1295 mm
50.98 in.
Rear (Back) track 1295 mm
50.98 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Leaf spring
Rear suspension Leaf spring
Front brakes Disc
Rear brakes Drum
Steering type Worm-reduction unit
Power steering Hydraulic Steering
Tires size 215/75 R15
