Specifications: Aston Martin DB11 Volante 4.0 V8 (510 Hp) Automatic 2018, 2019, 2020, 2021

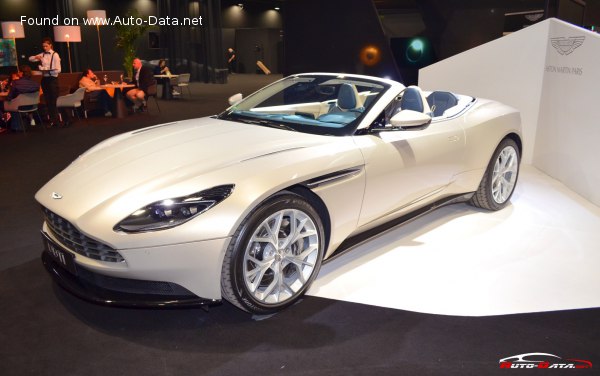

2019 Aston Martin DB11 Volante - Photo 1

Aston Martin DB11 Volante 4.0 V8 (510 Hp) Automatic – Full specifications
General information
Brand Aston Martin
Model DB11
Generation DB11 Volante
Modification (Engine) 4.0 V8 (510 Hp) Automatic
Start of production March, 2018 year
End of production July, 2021 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption at Low speed (WLTP) 20.4 l/100 km
11.53 US mpg
13.85 UK mpg
4.9 km/l
Fuel consumption at Medium speed (WLTP) 12.1 l/100 km
19.44 US mpg
23.35 UK mpg
8.26 km/l
Fuel consumption at high speed (WLTP) 9.4 l/100 km
25.02 US mpg
30.05 UK mpg
10.64 km/l
Fuel consumption at very high speed (WLTP) 9.9 l/100 km
23.76 US mpg
28.53 UK mpg
10.1 km/l
Combined fuel consumption (WLTP) 11.6 l/100 km
20.28 US mpg
24.35 UK mpg
8.62 km/l
CO2 emissions (WLTP) 263 g/km
CO2 emissions 255 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.1 sec
Acceleration 0 – 62 mph 4.1 sec
Acceleration 0 – 60 mph 3.9 sec
Maximum speed 300 km/h
186.41 mph
Weight-to-power ratio 3.7 kg/Hp, 272.7 Hp/tonne
Weight-to-torque ratio 2.8 kg/Nm, 361 Nm/tonne
Engine specs
Power 510 Hp @ 6000 rpm.
Power per litre 128.1 Hp/l
Torque 675 Nm @ 2000-5000 rpm.
497.85 lb.-ft. @ 2000-5000 rpm.
Maximum engine speed 7200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M 177
Engine displacement 3982 cm3
243 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-Turbo, Intercooler
Engine oil capacity 8.5 l
8.98 US qt | 7.48 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 18.6 l
19.65 US qt | 16.37 UK qt

Space, Volume and weights
Kerb Weight 1870 kg
4122.64 lbs.
Fuel tank capacity 78 l
20.61 US gal | 17.16 UK gal
Dimensions
Length 4750 mm
187.01 in.
Width 1950 mm
76.77 in.
Width including mirrors 2060 mm
81.1 in.
Height 1300 mm
51.18 in.
Wheelbase 2805 mm
110.43 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/40 ZR20; 295/35 ZR20
Wheel rims size 9J x 20; 11.0J x 20
