Specifications: Aston Martin DB12 Volante 4.0 V8 (680 Hp) Automatic 2023, 2024, 2025

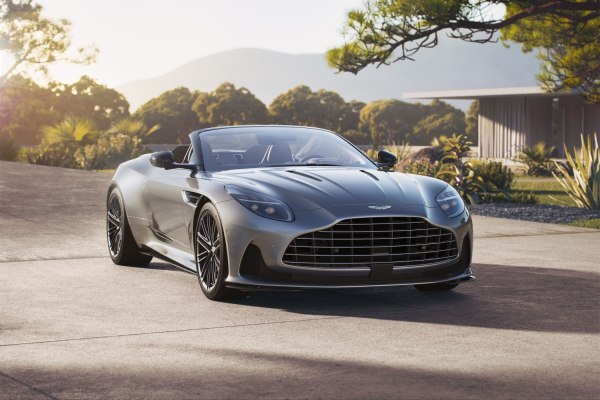

2024 Aston Martin DB12 Volante - Photo 1

Aston Martin DB12 Volante 4.0 V8 (680 Hp) Automatic – Full specifications
General information
Brand Aston Martin
Model DB12
Generation DB12 Volante
Modification (Engine) 4.0 V8 (680 Hp) Automatic
Start of production August, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Combined fuel consumption (WLTP) 12.2 l/100 km
19.28 US mpg
23.15 UK mpg
8.2 km/l
CO2 emissions (WLTP) 276 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 3.7 sec
Acceleration 0 – 62 mph 3.7 sec
Acceleration 0 – 60 mph 3.6 sec
Maximum speed 325 km/h
201.95 mph
Weight-to-power ratio 2.6 kg/Hp, 378.6 Hp/tonne
Weight-to-torque ratio 2.2 kg/Nm, 445.4 Nm/tonne
Engine specs
Power 680 Hp @ 6000 rpm.
Power per litre 170.8 Hp/l
Torque 800 Nm @ 2750-6000 rpm.
590.05 lb.-ft. @ 2750-6000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M177
Engine displacement 3982 cm3
243 cu. in.
Number of cylinders 8
Engine configuration V-engine
Compression ratio 8.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DVCT
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1796 kg
3959.5 lbs.
Trunk (boot) space – minimum 262 l
9.25 cu. ft.
Fuel tank capacity 78 l
20.61 US gal | 17.16 UK gal
Dimensions
Length 4725 mm
186.02 in.
Width with mirrors folded 2060 mm
81.1 in.
Width including mirrors 2135 mm
84.06 in.
Height 1295 mm
50.98 in.
Wheelbase 2805 mm
110.43 in.
Front overhang 925 mm
36.42 in.
Rear overhang 995 mm
39.17 in.
Ride height (ground clearance) 95 mm
3.74 in.
Minimum turning circle (turning diameter) 12.4 m
40.68 ft.
Approach angle 10.1°
Departure angle 20.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission ZF
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 400-410×36-38 mm
Rear brakes Ventilated discs, 360×36-38 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 275/35 ZR21
Rear wheel tires: 325/30 ZR21
Wheel rims size Front wheel rims: 21
Rear wheel rims: 21
