Specifications: Audi 100 (4A,C4) 2.0 E (115 Hp) quattro 1990, 1991, 1992

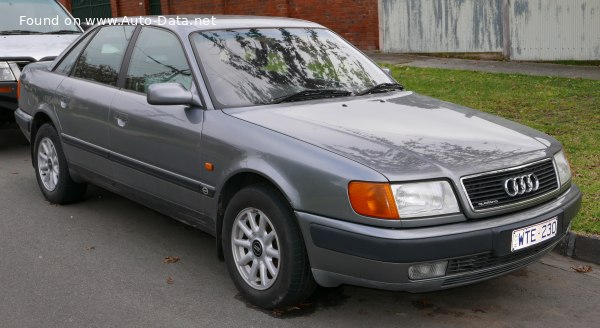

1990 Audi 100 (4A,C4) - Photo 1

Audi 100 (4A,C4) 2.0 E (115 Hp) quattro – Full specifications
General information
Brand Audi
Model 100
Generation 100 (4A,C4)
Modification (Engine) 2.0 E (115 Hp) quattro
Start of production 1990 year
End of production 1992 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 11.9 l/100 km
19.77 US mpg
23.74 UK mpg
8.4 km/l
Fuel consumption (economy) – extra urban 7.3 l/100 km
32.22 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – combined 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.4 sec
Acceleration 0 – 62 mph 11.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.8 sec
Maximum speed 191 km/h
118.68 mph
Weight-to-power ratio 12.4 kg/Hp, 80.4 Hp/tonne
Weight-to-torque ratio 8.5 kg/Nm, 117.5 Nm/tonne
Engine specs
Power 115 Hp @ 5400 rpm.
Power per litre 58 Hp/l
Torque 168 Nm @ 3200 rpm.
123.91 lb.-ft. @ 3200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code ABK, AAD
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 10.4:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 3 l
3.17 US qt | 2.64 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1430 kg
3152.61 lbs.
Max. weight 2030 kg
4475.38 lbs.
Max load 600 kg
1322.77 lbs.
Trunk (boot) space – minimum 510 l
18.01 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4790 mm
188.58 in.
Width 1777 mm
69.96 in.
Height 1437 mm
56.57 in.
Wheelbase 2692 mm
105.98 in.
Front track 1526 mm
60.08 in.
Rear (Back) track 1527 mm
60.12 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 15
