Specifications: Audi 100 (C1) 1.8 (80 Hp) 1968, 1969, 1970, 1971

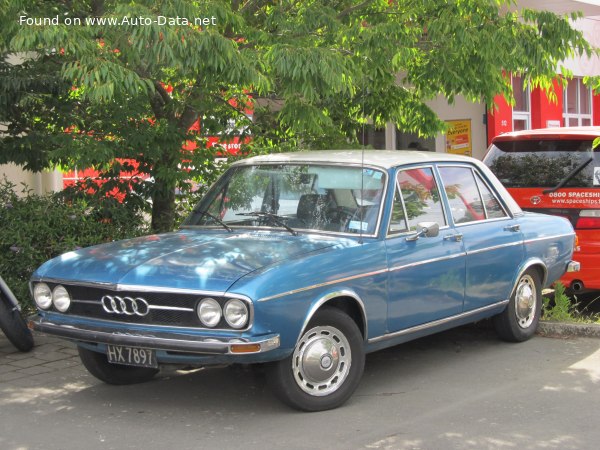

1968 Audi 100 (C1) - Photo 1

Audi 100 (C1) 1.8 (80 Hp) – Full specifications
General information
Brand Audi
Model 100
Generation 100 (C1)
Modification (Engine) 1.8 (80 Hp)
Start of production 1968 year
End of production 1971 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 2-4
Performance specs
Fuel consumption (economy) – combined 10.8 l/100 km
21.78 US mpg
26.16 UK mpg
9.26 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.5 sec
Acceleration 0 – 62 mph 13.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.8 sec
Maximum speed 156 km/h
96.93 mph
Weight-to-power ratio 13.1 kg/Hp, 76.2 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 128.6 Nm/tonne
Engine specs
Power 80 Hp @ 5000 rpm.
Power per litre 45.4 Hp/l
Torque 135 Nm @ 3000 rpm.
99.57 lb.-ft. @ 3000 rpm.
Engine Model/Code F104
Engine displacement 1761 cm3
107.46 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81.5 mm
3.21 in.
Piston Stroke 84.4 mm
3.32 in.
Compression ratio 9.1:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Coolant 7.5 l
7.93 US qt | 6.6 UK qt

Space, Volume and weights
Kerb Weight 1050 kg
2314.85 lbs.
Max. weight 1530 kg
3373.07 lbs.
Max load 480 kg
1058.22 lbs.
Trunk (boot) space – maximum 650 l
22.95 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Dimensions
Length 4590 mm
180.71 in.
Width 1729 mm
68.07 in.
Height 1421 mm
55.94 in.
Wheelbase 2675 mm
105.31 in.
Front track 1420 mm
55.91 in.
Rear (Back) track 1425 mm
56.1 in.
Ride height (ground clearance) 161 mm
6.34 in.
Drag coefficient (Cd) 0.42
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
