Specifications: Audi 50 (Typ 86) 1.3 GLS (60 Hp) 1977, 1978

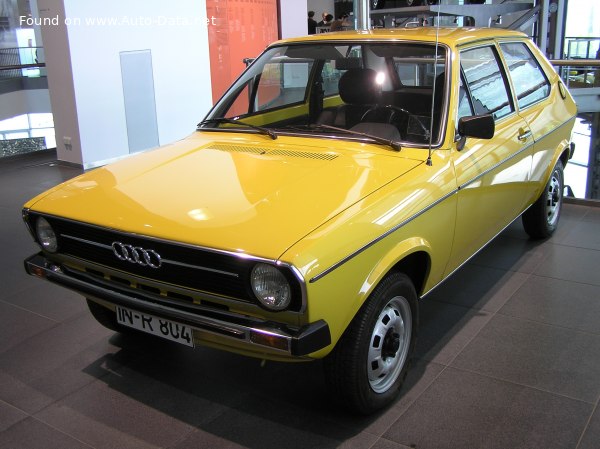

1974 Audi 50 (Typ 86) - Photo 1

Audi 50 (Typ 86) 1.3 GLS (60 Hp) – Full specifications
General information
Brand Audi
Model 50
Generation 50 (Typ 86)
Modification (Engine) 1.3 GLS (60 Hp)
Start of production 1977 year
End of production 1978 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – combined 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.9 sec
Acceleration 0 – 62 mph 12.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.3 sec
Maximum speed 152 km/h
94.45 mph
Weight-to-power ratio 11.4 kg/Hp, 87.6 Hp/tonne
Weight-to-torque ratio 7.4 kg/Nm, 135.8 Nm/tonne
Engine specs
Power 60 Hp @ 5600 rpm.
Power per litre 47.2 Hp/l
Torque 93 Nm @ 3400 rpm.
68.59 lb.-ft. @ 3400 rpm.
Engine Model/Code HH
Engine displacement 1272 cm3
77.62 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 72 mm
2.83 in.
Compression ratio 8:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 685 kg
1510.17 lbs.
Max. weight 1100 kg
2425.08 lbs.
Max load 415 kg
914.92 lbs.
Trunk (boot) space – minimum 260 l
9.18 cu. ft.
Trunk (boot) space – maximum 660 l
23.31 cu. ft.
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Dimensions
Length 3538 mm
139.29 in.
Width 1560 mm
61.42 in.
Height 1344 mm
52.91 in.
Wheelbase 2335 mm
91.93 in.
Front track 1296 mm
51.02 in.
Rear (Back) track 1312 mm
51.65 in.
Drag coefficient (Cd) 0.42
Minimum turning circle (turning diameter) 9.6 m
31.5 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
