Specifications: Audi 80 (B2, Typ 81,85) 1.6 (70 Hp) Automatic 1978, 1979, 1980, 1981

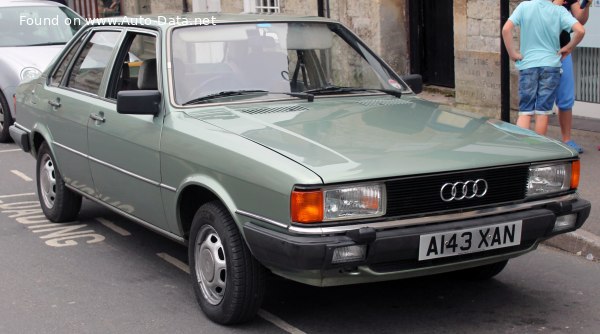

1978 Audi 80 (B2, Typ 81,85) - Photo 1

Audi 80 (B2, Typ 81,85) 1.6 (70 Hp) Automatic – Full specifications
General information
Brand Audi
Model 80
Generation 80 (B2, Typ 81,85)
Modification (Engine) 1.6 (70 Hp) Automatic
Start of production 1978 year
End of production 1981 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 2-4
Performance specs
Fuel consumption (economy) – combined 11.4 l/100 km
20.6 US mpg
24.8 UK mpg
8.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 16.5 sec
Acceleration 0 – 62 mph 16.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 15.7 sec
Maximum speed 152 km/h
94.45 mph
Weight-to-power ratio 13.6 kg/Hp, 73.3 Hp/tonne
Weight-to-torque ratio 7.9 kg/Nm, 126.7 Nm/tonne
Engine specs
Power 70 Hp @ 5600 rpm.
Power per litre 44.1 Hp/l
Torque 121 Nm @ 3200 rpm.
89.25 lb.-ft. @ 3200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CY
Engine displacement 1588 cm3
96.91 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 80 mm
3.15 in.
Compression ratio 8.2:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 3 l
3.17 US qt | 2.64 UK qt
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 955 kg
2105.41 lbs.
Max. weight 1410 kg
3108.52 lbs.
Max load 455 kg
1003.1 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 4383 mm
172.56 in.
Width 1682 mm
66.22 in.
Height 1365 mm
53.74 in.
Wheelbase 2541 mm
100.04 in.
Front track 1400 mm
55.12 in.
Rear (Back) track 1420 mm
55.91 in.
Drag coefficient (Cd) 0.40
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 3 gears, automatic transmission
Steering type Steering rack and pinion
