Specifications: Audi A2 (Typ 8Z) 1.2 TDI (61 Hp) Automatic 2000, 2001, 2002, 2003, 2004, 2005

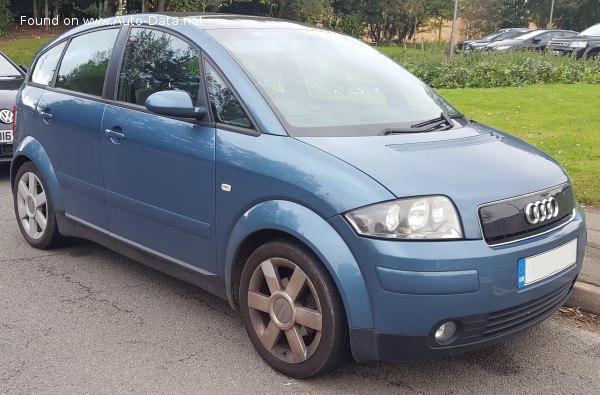

2000 Audi A2 (Typ 8Z) - Photo 1

Audi A2 (Typ 8Z) 1.2 TDI (61 Hp) Automatic – Full specifications
General information
Brand Audi
Model A2
Generation A2 (Typ 8Z)
Modification (Engine) 1.2 TDI (61 Hp) Automatic
Start of production 2000 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 3.6 l/100 km
65.3 US mpg
78.5 UK mpg
27.8 km/l
Fuel consumption (economy) – extra urban 2.7 l/100 km
87.1 US mpg
104.6 UK mpg
37 km/l
Fuel consumption (economy) – combined 3 l/100 km
78.4 US mpg
94.2 UK mpg
33.3 km/l
CO2 emissions 81 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.9 sec
Acceleration 0 – 62 mph 14.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.2 sec
Maximum speed 168 km/h
104.39 mph
Emission standard Euro 3
Weight-to-power ratio 15.2 kg/Hp, 65.6 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 150.5 Nm/tonne
Engine specs
Power 61 Hp @ 4000 rpm.
Power per litre 51.2 Hp/l
Torque 140 Nm @ 1800 rpm.
103.26 lb.-ft. @ 1800 rpm.
Engine layout Front, Transverse
Engine Model/Code ANY
Engine displacement 1191 cm3
72.68 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 76.5 mm
3.01 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 19.5:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger
Valvetrain OHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.2 l
4.44 US qt | 3.7 UK qt

Space, Volume and weights
Kerb Weight 930 kg
2050.3 lbs.
Max. weight 1245 kg
2744.76 lbs.
Max load 315 kg
694.46 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Trunk (boot) space – maximum 1085 l
38.32 cu. ft.
Fuel tank capacity 34 l
8.98 US gal | 7.48 UK gal
Max. roof load 40 kg
88.18 lbs.
Dimensions
Length 3826 mm
150.63 in.
Width 1673 mm
65.87 in.
Height 1553 mm
61.14 in.
Wheelbase 2405 mm
94.69 in.
Front track 1470 mm
57.87 in.
Rear (Back) track 1424 mm
56.06 in.
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Wishbone
Rear suspension Suspension with traction connecting levers
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 145/80 R14
Wheel rims size 4.5J x 14
