Specifications: Audi A3 (8P, facelift 2005) 1.6 (102 Hp) 2005, 2006, 2007, 2008

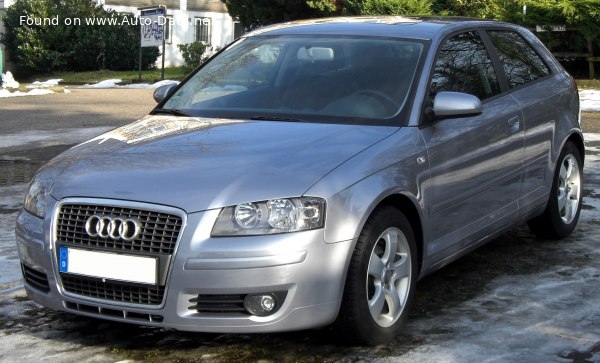

2006 Audi A3 (8P, facelift 2005) - Photo 1

Audi A3 (8P, facelift 2005) 1.6 (102 Hp) – Full specifications
General information
Brand Audi
Model A3
Generation A3 (8P, facelift 2005)
Modification (Engine) 1.6 (102 Hp)
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 9.6-9.8 l/100 km
24.5 – 24 US mpg
29.43 – 28.82 UK mpg
10.42 – 10.2 km/l
Fuel consumption (economy) – extra urban 5.6-5.9 l/100 km
42 – 39.87 US mpg
50.44 – 47.88 UK mpg
17.86 – 16.95 km/l
Fuel consumption (economy) – combined 7.1-7.3 l/100 km
33.13 – 32.22 US mpg
39.79 – 38.7 UK mpg
14.08 – 13.7 km/l
CO2 emissions 170-175 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.9 sec
Acceleration 0 – 62 mph 11.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.3 sec
Maximum speed 185 km/h
114.95 mph
Emission standard Euro 4
Weight-to-power ratio 11.8 kg/Hp, 84.6 Hp/tonne
Weight-to-torque ratio 8.1 kg/Nm, 122.8 Nm/tonne
Engine specs
Power 102 Hp @ 5600 rpm.
Power per litre 63.9 Hp/l
Torque 148 Nm @ 3800 rpm.
109.16 lb.-ft. @ 3800 rpm.
Engine layout Front, Transverse
Engine Model/Code BGU, BSE, BSF
Engine displacement 1595 cm3
97.33 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 77.4 mm
3.05 in.
Compression ratio 10.3:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.4 l
7.82 US qt | 6.51 UK qt

Space, Volume and weights
Kerb Weight 1205 kg
2656.57 lbs.
Max. weight 1765 kg
3891.16 lbs.
Max load 560 kg
1234.59 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Trunk (boot) space – maximum 1080 l
38.14 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1500 kg
3306.93 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 640 kg
1410.96 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4214 mm
165.91 in.
Width 1765 mm
69.49 in.
Height 1421 mm
55.94 in.
Wheelbase 2578 mm
101.5 in.
Front track 1534 mm
60.39 in.
Rear (Back) track 1507 mm
59.33 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size 6.5J X 16
