Specifications: Audi A3 allstreet (8Y, facelift 2024) 40 TFSI e (204 Hp) Plug-in Hybrid S tronic 2024, 2025

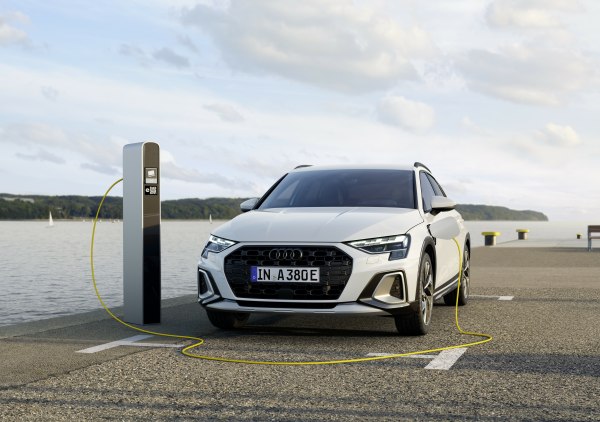

2025 Audi A3 allstreet (8Y, facelift 2024) - Photo 1

Audi A3 allstreet (8Y, facelift 2024) 40 TFSI e (204 Hp) Plug-in Hybrid S tronic – Full specifications
General information
Brand Audi
Model A3
Generation A3 allstreet (8Y, facelift 2024)
Modification (Engine) 40 TFSI e (204 Hp) Plug-in Hybrid S tronic
Start of production November, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Crossover
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 0.3-0.4 l/100 km
784.05 – 588.04 US mpg
941.6 – 706.2 UK mpg
333.33 – 250 km/l
CO2 emissions (WLTP) 7-8 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 7.4 sec
Acceleration 0 – 62 mph 7.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7 sec
Maximum speed 225 km/h
139.81 mph
Emission standard Euro 6e
Weight-to-power ratio 7.9 kg/Hp, 126.7 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 217.4 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 25.7 kWh
Net (usable) battery capacity 19.7 kWh
Battery voltage 400 V
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery location Below the floor, under the rear seats
All-electric range (WLTP) 128-139 km
79.54 – 86.37 mi
Average Energy consumption (WLTP) 15-16 kWh/100 km

24.14 – 25.75 kWh/100 mi
140 – 131 MPGe
6.7 – 6.3 km/kWh
4.1 – 3.9 mi/kWh
Max speed (electric) 140 km/h

86.99 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 116 Hp
Electric motor Torque 330 Nm

243.4 lb.-ft.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 204 Hp
System torque 350 Nm
258.15 lb.-ft.
Internal combustion engine specs
Power 150 Hp @ 5000-6000 rpm.
Power per litre 100.1 Hp/l
Torque 250 Nm @ 1500-4000 rpm.
184.39 lb.-ft. @ 1500-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code EA211 evo2
Engine displacement 1498 cm3
91.41 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm
2.93 in.
Piston Stroke 85.9 mm
3.38 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Coolant 16.2 l
17.12 US qt | 14.25 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1610 kg
3549.44 lbs.
Max. weight 2095 kg
4618.68 lbs.
Max load 485 kg
1069.24 lbs.
Trunk (boot) space – minimum 280 l
9.89 cu. ft.
Trunk (boot) space – maximum 1100 l
38.85 cu. ft.
Fuel tank capacity 40 l
10.57 US gal | 8.8 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1700 kg
3747.86 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4353 mm
171.38 in.
Width 1816 mm
71.5 in.
Width including mirrors 1984 mm
78.11 in.
Height 1470 mm
57.87 in.
Wheelbase 2629 mm
103.5 in.
Front track 1553 mm
61.14 in.
Rear (Back) track 1523-1526 mm
59.96 – 60.08 in.
Front overhang 907 mm
35.71 in.
Rear overhang 817 mm
32.17 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Approach angle 15°
Departure angle 26.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission S tronic
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R17
Wheel rims size 7J x 17
