Specifications: Audi A3 Sportback (8PA) 1.9 TDI (105 Hp) S-Tronic 2006, 2007, 2008

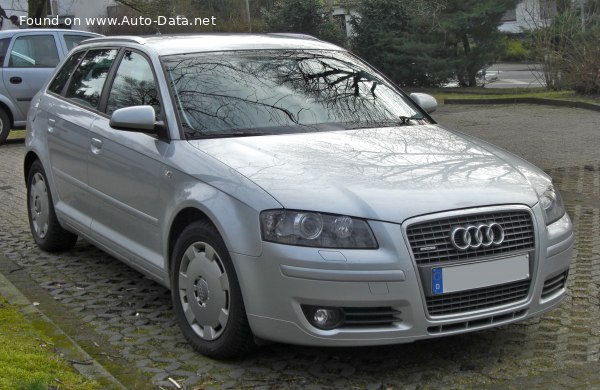

2005 Audi A3 Sportback (8PA) - Photo 1

Audi A3 Sportback (8PA) 1.9 TDI (105 Hp) S-Tronic – Full specifications
General information
Brand Audi
Model A3
Generation A3 Sportback (8PA)
Modification (Engine) 1.9 TDI (105 Hp) S-Tronic
Start of production 2006 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel consumption (economy) – extra urban 4.3 l/100 km
54.7 US mpg
65.69 UK mpg
23.26 km/l
Fuel consumption (economy) – combined 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.4 sec
Acceleration 0 – 62 mph 11.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.8 sec
Maximum speed 187 km/h
116.2 mph
Emission standard Euro 4
Weight-to-power ratio 13 kg/Hp, 77.2 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 183.8 Nm/tonne
Engine specs
Power 105 Hp @ 4000 rpm.
Power per litre 55.4 Hp/l
Torque 250 Nm @ 1900 rpm.
184.39 lb.-ft. @ 1900 rpm.
Engine layout Front, Transverse
Engine Model/Code EA188 / BKC, BXE
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 19:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1360 kg
2998.29 lbs.
Max. weight 1920 kg
4232.88 lbs.
Max load 560 kg
1234.59 lbs.
Trunk (boot) space – minimum 370 l
13.07 cu. ft.
Trunk (boot) space – maximum 1120 l
39.55 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4286 mm
168.74 in.
Width 1765 mm
69.49 in.
Height 1423 mm
56.02 in.
Wheelbase 2578 mm
101.5 in.
Front track 1534 mm
60.39 in.
Rear (Back) track 1507 mm
59.33 in.
Ride height (ground clearance) 113 mm
4.45 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission S-Tronic
Front suspension Spring Strut
Rear suspension Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16
Wheel rims size 6.5J x 16
