Specifications: Audi A3 Sportback (8Y) 40 TFSI e (204 Hp) Plug-in Hybrid S tronic 2020, 2021, 2022, 2023, 2024

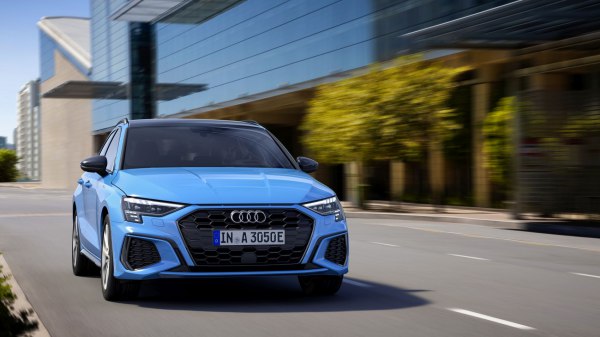

2021 Audi A3 Sportback (8Y) - Photo 1

Audi A3 Sportback (8Y) 40 TFSI e (204 Hp) Plug-in Hybrid S tronic – Full specifications
General information
Brand Audi
Model A3
Generation A3 Sportback (8Y)
Modification (Engine) 40 TFSI e (204 Hp) Plug-in Hybrid S tronic
Start of production September, 2020 year
End of production 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined (NEDC) 1.4-1.5 l/100 km
168.01 – 156.81 US mpg
201.77 – 188.32 UK mpg
71.43 – 66.67 km/l
CO2 emissions (NEDC) 30-34 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 7.6 sec
Acceleration 0 – 62 mph 7.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.2 sec
Maximum speed 227 km/h
141.05 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 7.6 kg/Hp, 130.8 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 224.4 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 13 kWh
Battery technology Lithium-ion (Li-Ion)
Battery weight 130 kg
286.6 lbs.
Battery location Below the floor, under the rear seats
All-electric range (WLTP) 59-65 km
36.66 – 40.39 mi
All-electric range (NEDC) 78 km
48.47 mi
Average Energy consumption (NEDC) 13-13.8 kWh/100 km

20.92 – 22.21 kWh/100 mi
161 – 152 MPGe
7.7 – 7.2 km/kWh
4.8 – 4.5 mi/kWh
Max speed (electric) 140 km/h

86.99 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 109 Hp
Electric motor Torque 330 Nm

243.4 lb.-ft.
Electric motor location Between the combustion engine and the transmission
System power 204 Hp
System torque 350 Nm
258.15 lb.-ft.
Internal combustion engine specs
Power 150 Hp @ 5000-6000 rpm.
Power per litre 107.5 Hp/l
Torque 250 Nm @ 1550-3500 rpm.
184.39 lb.-ft. @ 1550-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code DGEA
Engine displacement 1395 cm3
85.13 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm
2.93 in.
Piston Stroke 80 mm
3.15 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.6 l
15.43 US qt | 12.85 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1560 kg
3439.21 lbs.
Max. weight 2065 kg
4552.55 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 280 l
9.89 cu. ft.
Trunk (boot) space – maximum 1100 l
38.85 cu. ft.
Fuel tank capacity 40 l
10.57 US gal | 8.8 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1700 kg
3747.86 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4343 mm
170.98 in.
Width 1816 mm
71.5 in.
Width including mirrors 1984 mm
78.11 in.
Height 1458 mm
57.4 in.
Wheelbase 2630 mm
103.54 in.
Front track 1548 mm
60.94 in.
Rear (Back) track 1516 mm
59.69 in.
Front overhang 905 mm
35.63 in.
Rear overhang 808 mm
31.81 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Departure angle 13.9°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission S tronic
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size 7.5J x 16
