Specifications: Audi A4 allroad (B8 8K) 2.0 TFSI (211 Hp) quattro 2009, 2010, 2011

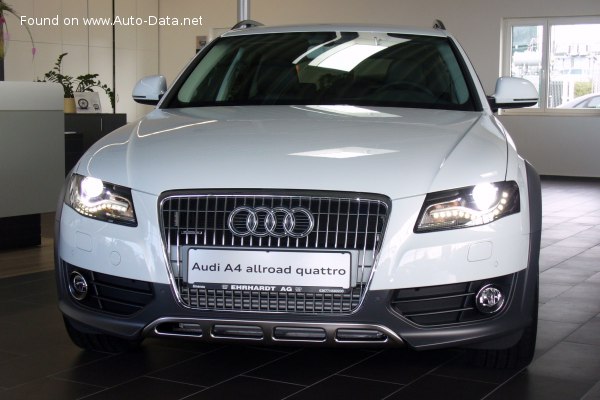

2010 Audi A4 allroad (B8 8K) - Photo 1

Audi A4 allroad (B8 8K) 2.0 TFSI (211 Hp) quattro – Full specifications
General information
Brand Audi
Model A4
Generation A4 allroad (B8 8K)
Modification (Engine) 2.0 TFSI (211 Hp) quattro
Start of production 2009 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate), Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) – extra urban 6.5 l/100 km
36.19 US mpg
43.46 UK mpg
15.38 km/l
Fuel consumption (economy) – combined 7.9 l/100 km
29.77 US mpg
35.76 UK mpg
12.66 km/l
CO2 emissions 184 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.9 sec
Acceleration 0 – 62 mph 6.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.6 sec
Maximum speed 230 km/h
142.92 mph
Emission standard Euro 5
Weight-to-power ratio 7.7 kg/Hp, 130.7 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 216.7 Nm/tonne
Engine specs
Power 211 Hp @ 4300-6000 rpm.
Power per litre 106.4 Hp/l
Torque 350 Nm @ 1500-4200 rpm.
258.15 lb.-ft. @ 1500-4200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA888 / CAEB
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.8 l
8.24 US qt | 6.86 UK qt

Space, Volume and weights
Kerb Weight 1615 kg
3560.47 lbs.
Max. weight 2185 kg
4817.1 lbs.
Max load 570 kg
1256.63 lbs.
Trunk (boot) space – minimum 490 l
17.3 cu. ft.
Trunk (boot) space – maximum 1430 l
50.5 cu. ft.
Fuel tank capacity 64 l
16.91 US gal | 14.08 UK gal
Max. roof load 90 kg
198.42 lbs.
Permitted trailer load with brakes (8%) 1900 kg
4188.78 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4721 mm
185.87 in.
Width 1841 mm
72.48 in.
Height 1495 mm
58.86 in.
Wheelbase 2805 mm
110.43 in.
Front track 1583 mm
62.32 in.
Rear (Back) track 1574 mm
61.97 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R17
Wheel rims size 8J x 17
