Specifications: Audi A4 Avant (B5, Typ 8D) 2.6 V6 (150 Hp) Tiptronic 1996, 1997

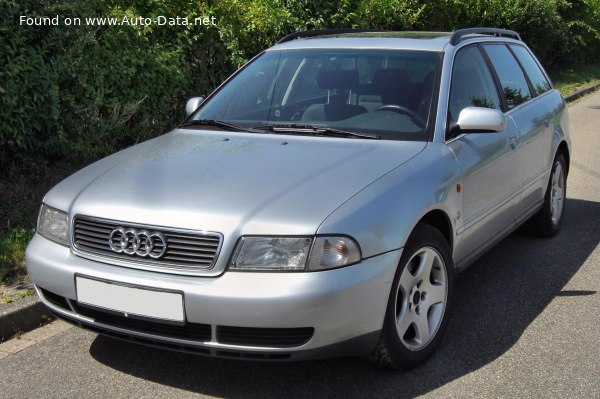

1996 Audi A4 Avant (B5, Typ 8D) - Photo 1

Audi A4 Avant (B5, Typ 8D) 2.6 V6 (150 Hp) Tiptronic – Full specifications
General information
Brand Audi
Model A4
Generation A4 Avant (B5, Typ 8D)
Modification (Engine) 2.6 V6 (150 Hp) Tiptronic
Start of production 1996 year
End of production 1997 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 8.9 l/100 km
26.43 US mpg
31.74 UK mpg
11.24 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.9 sec
Acceleration 0 – 62 mph 8.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.5 sec
Maximum speed 216 km/h
134.22 mph
Weight-to-power ratio 9 kg/Hp, 111.1 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 166.7 Nm/tonne
Engine specs
Power 150 Hp @ 5500 rpm.
Power per litre 57.7 Hp/l
Torque 225 Nm @ 3500 rpm.
165.95 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code ABC
Engine displacement 2598 cm3
158.54 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 81 mm
3.19 in.
Compression ratio 10:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1350 kg
2976.24 lbs.
Max. weight 1900 kg
4188.78 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 390 l
13.77 cu. ft.
Trunk (boot) space – maximum 1250 l
44.14 cu. ft.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Dimensions
Length 4479 mm
176.34 in.
Width 1733 mm
68.23 in.
Height 1417 mm
55.79 in.
Wheelbase 2622 mm
103.23 in.
Front track 1498 mm
58.98 in.
Rear (Back) track 1479 mm
58.23 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission Tiptronic
Front suspension Wishbone
Rear suspension Suspension with traction connecting levers
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 15
